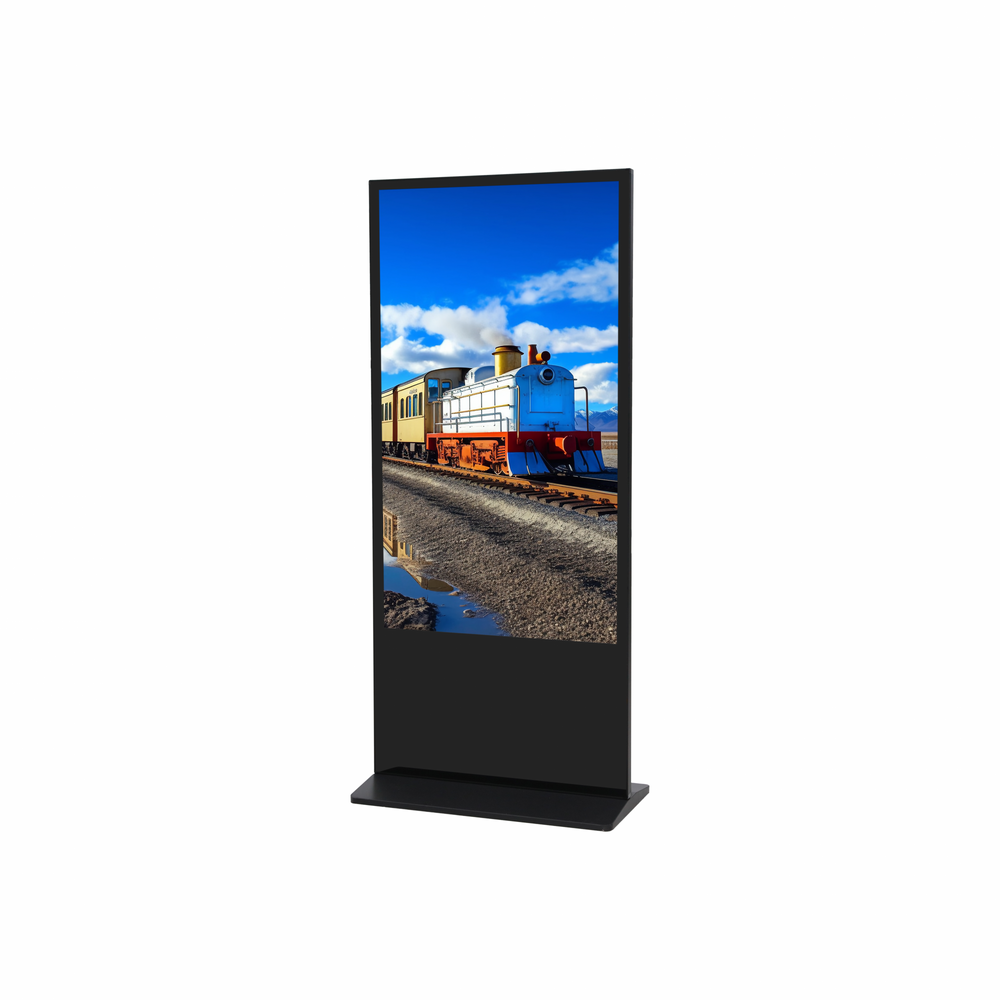

The Dahua LDV65-SAI400TL is a 65-inch vertical indoor LCD digital signage unit designed for continuous operation. Featuring a 4K resolution, Android 11.0 operating system, and intelligent split-screen capabilities, it supports remote content management. Smart-Boards supplies this industrial-grade display across the GCC and Africa with tailored logistics and support.
This industrial-grade vertical display utilizes a 65-inch IPS/VA panel with DLED backlighting to deliver 2160 × 3840 resolution at 320 cd/m² brightness. The built-in quad-core CPU and 4 GB RAM enable efficient playback of 4K video content via Android 11.0. Its capacitive touch technology supports 10 touch points with a response time of ≤8 ms, while the metal casing ensures durability in high-traffic environments.
Managed through a B/S architecture, the device allows centralized program release and remote control via its RJ-45 Ethernet port. Optional external Wi-Fi modules expand connectivity for flexible deployment. The unit includes a bracket, power cord, and remote control, weighing 65 kg net. Smart-Boards provides quote-only pricing and coordinates delivery to UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and African nations, with on-site installation available within the UAE.
Key features
- 4K Vertical Display - Features a 65-inch LCD panel with 2160 × 3840 resolution and 178° viewing angles for clear vertical content presentation.
- Android 11.0 System - Runs on Android 11.0 with a quad-core A55 CPU, 4 GB RAM, and 32 GB ROM for stable media playback.
- Intelligent Split Screen - Supports free page layout adjustment with intelligent split-screen modes to display multiple content sources simultaneously.
- Remote Management - Enables unified platform management, time-based scheduling, and encrypted data transmission for secure content updates.
- Touch & Connectivity - Includes capacitive 10-point touch, HDMI 2.1 input, USB 3.0, and RJ-45 Ethernet for versatile hardware integration.
- Included Accessories - Comes with a mounting bracket, power cord, remote control, user manual, and regulatory documentation for immediate setup.
Ideal for: Suitable for lobby directories, queue management, and corporate information displays, this vertical signage unit suits buyers across the GCC and Africa seeking reliable digital communication tools.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- microSD card slot × 1
- Model
- LDV65-SAI400TL
- Key features
- Industrial-grade panel, 24/7 operation, quad-core CPU, Android 11, 4K decoding, split-screen layout, B/S remote management, encrypted data transmission, multi-level release review, terminal password
- Orientation
- Portrait
Display
- Backlight
- Direct LED
- Brightness
- 320 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Resolution
- 4K UHD
- Screen size
- 65"
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 9:16
- Response time
- 8 ms
Touch
- Touch points
- 10-point multi-touch
- Touch technology
- PCAP
System
- Processor
- ARM 4x Cortex-A55, 1.92 GHz
- Operating system
- Android 11
- RAM
- 4 GB
- Storage
- 32 GB
- Operating hours
- 24/7
Connectivity
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 1
- USB ports
- USB 2.0 × 1, USB 3.0 × 1
Camera & audio
- Audio out
- 3.5 mm audio out
- Speaker output
- 2 × 5 W
Physical & warranty
- Mounting type
- Vertical mount
- In the box
- Bracket, User's manual, Power cord, Legal and regulatory information, Energy label, Remote control
- Operating humidity
- 10% to 85% RH
- Operating temperature
- 0°C to 40°C
- Power consumption
- 150 W (typical), 160 W (max)
- Standby power
- ≤ 0.5 W
- Dimensions
- 2000 x 882 x 471.5 mm
- Weight
- 65 kg
- Shipping dimensions
- 2125 x 200 x 1050 mm
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the screen resolution of the Dahua LDV65-SAI400TL?
The screen resolution is 2160 pixels horizontally by 3840 pixels vertically (4K UHD). This 9:16 aspect ratio is optimized for vertical content display in indoor environments.
Does this digital signage support touch input?
Yes, the unit features capacitive touch technology that supports up to 10 simultaneous touch points with a response time of ≤8 ms, allowing for interactive content navigation.
Which countries does Smart-Boards deliver this product to?
Smart-Boards ships this product to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations. Delivery times depend on the specific country and order size, which are confirmed during the quotation process.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, the unit is delivered ready for local setup with remote guidance available from the Smart-Boards team if needed.
What operating system does the LDV65-SAI400TL use?
It runs on Android 11.0, powered by a quad-core 1.92 GHz CPU. This system supports intelligent split-screen layouts and remote content management via its B/S architecture.
How is content managed remotely?
The device uses a B/S architecture for unified platform management. Administrators can release programs by time and location, manage multi-level permissions, and generate operation reports remotely.
What accessories are included in the box?
The package includes a vertical mounting bracket, user's manual, power cord, remote control, and required legal/regulatory information. The Wi-Fi module is optional and may need separate procurement.
