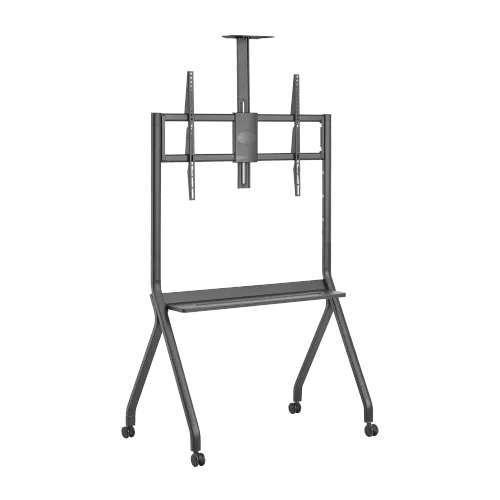

VSYS VTLX16-69FW Mobile Display Cart with Camera Shelf for 55"–100" Displays, 120 kg. A heavy-duty trolley built around the way hybrid meetings actually run.
Most large-format displays end up bolted to a wall in one room, which is fine until the training session moves next door. The VSYS VTLX16-69FW puts a 55" to 100" panel weighing up to 120 kg on locking castors instead, and adds the piece that fixed installations usually forget: a height-adjustable shelf that sits a conferencing camera directly above the screen, where it frames the room properly. Smart-Boards supplies it across the GCC and Africa alongside our interactive panel and commercial display range, with quotations and low-cost delivery to your country.
Display height is set at assembly to one of four positions - 1150, 1275, 1400 or 1525 mm - so the screen centre can be matched to a seated boardroom, a standing training room or a classroom with young pupils. The bracket accepts VESA patterns from 200x200 mm all the way to 900x600 mm, which is what a 100" panel needs. A second shelf takes up to 10 kg of media player, codec or soundbar, the camera shelf takes 5 kg, and cable clips keep the leads off the floor. Three finishes are available: fine texture black, matte white and matte grey.
Key features
- 120 kg display rating - genuine headroom for a 98" or 100" commercial panel rather than a figure that only works at the small end of the range
- Height-adjustable camera shelf places a conferencing camera above the display, at eye level with the room, instead of clamped to a table
- Four preset heights from 1150 mm to 1525 mm let one cart serve a boardroom, a training room or a classroom depending on where you set it
- VESA span from 200x200 mm to 900x600 mm covers the full 55" to 100" range, including large interactive flat panels
- Second equipment shelf rated to 10 kg holds a media player, codec, soundbar or laptop
- Heavy-duty locking castors roll a heavy panel between rooms then lock solid before anyone touches the screen
- No wall drilling and no structural survey - important in leased offices and in buildings where you cannot core the walls
- Three finishes - fine texture black, matte white, matte grey - so the cart can be matched to existing room furniture
- Cable clips along the frame keep HDMI, USB and power runs tidy while the cart is being moved
- Powder-coated steel frame and bolt-together base, supplied with hardware and an assembly guide
| Brand | VSYS |
|---|---|
| Cable management | Cable clips along the frame |
| Camera shelf | Height adjustable, rated 5 kg |
| Colour | Fine texture black, matte white or matte grey |
| Display compatibility | 55 inch to 100 inch flat or curved displays |
| Equipment shelf | Rated 10 kg |
| Height adjustment | Four preset positions: 1150, 1275, 1400 and 1525 mm |
| In the box | Steel frame, display bracket, height-adjustable camera shelf, castor base, mounting hardware bag, assembly guide |
|---|---|
| Material | Steel and plastic, powder coated |
| Max load | 120 kg display, 10 kg equipment shelf, 5 kg camera shelf |
| Mobility | Heavy-duty locking castors |
| Mounting type | Mobile floor cart on locking castors |
| Vesa pattern | 200x200 mm to 900x600 mm |
| Model | VTLX16-69FW |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VTLX16-69FW?
It is a heavy-duty mobile cart for large displays. It carries a 55" to 100" screen of up to 120 kg on locking castors, offers four preset display heights, and includes a height-adjustable camera shelf plus a 10 kg equipment shelf for conferencing gear.
2. Is it compatible with my display?
Yes - if the panel is 55" to 100", weighs 120 kg or less and has a VESA pattern between 200x200 mm and 900x600 mm, it will fit. Tell us your display model when you request a quote and we will confirm the exact fit.
3. Can I put an interactive flat panel on it rather than a television?
Yes, and it is a natural pairing. Interactive panels in the 65" to 98" range sit inside the size, weight and VESA limits, and a cart lets the same board serve several classrooms. Set the lower height positions for primary classrooms so pupils can reach the top of the writing surface.
4. What is the camera shelf actually for?
It holds a video-conferencing camera or soundbar-camera above the display, so remote participants see the room from the same line as the screen rather than from a laptop lid on the table. The shelf height adjusts independently and is rated to 5 kg.
5. How do I change the display height?
The frame has four fixed mounting positions - 1150, 1275, 1400 and 1525 mm - selected when the cart is assembled or reconfigured. This is a preset system, not a gas-lift or motorised column, which is why the cart holds 120 kg at a lower cost. If you need height changed during a session, ask us about the motorised carts in the same range.
6. Do you ship the VSYS VTLX16-69FW across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
7. How do I get a price for the VSYS VTLX16-69FW?
Pricing is on request. Send a quote request from the product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
8. Is installation included?
Within the UAE, yes - our team can assemble the cart and mount the display. Outside the UAE we ship it ready for local assembly with the hardware and guide included; given the weight of a 100" panel, plan on two people for the lift.
9. Which finish should I order?
Fine texture black, matte white and matte grey are available. Black hides marks best in high-traffic training rooms, white suits modern classrooms and showrooms, grey is the usual choice when the cart has to disappear into an office fit-out. State your preference on the quote request.
10. Can you supply large quantities for a rollout?
Yes - Smart-Boards handles multi-unit rollouts across the GCC and Africa, with volume pricing and procurement-ready documentation for tenders and education projects. Carts are a common line item on school and university tenders and we can quote them alongside panels.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards - GCC & Africa supply, shipping and UAE installation.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
