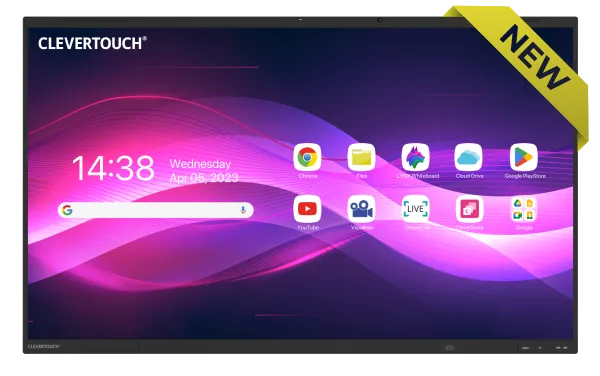

The Clevertouch IMPACT Lux 2 86-inch interactive flat panel is a Google-EDLA-certified display featuring Android 15, 4K UHD resolution, and 50-point simultaneous touch. It includes integrated NFC, WiFi 6E, and antibacterial glass. Smart-Boards supplies and supports this model for educational and corporate clients across the GCC and African regions.
This interactive display combines premium hardware with an advanced Android 15 operating system to support modern collaborative workflows. The 86-inch IPS screen delivers 4K UHD resolution with 1.07 billion colours and 500 cd/m² brightness, ensuring clarity in well-lit environments. An ultra-responsive HPIR touch frame provides 50 simultaneous touch points with palm rejection and ±1mm accuracy, allowing multiple users to write or annotate over any source simultaneously. The integrated NFC reader/writer and WiFi 6E connectivity facilitate quick device pairing and high-speed data transfer, while the RK3588 main board ensures stable performance for intensive applications.
Smart-Boards provides this Clevertouch model to organisations across the GCC and Africa, offering live or virtual demonstrations to verify suitability for specific rooms. We manage complex multi-site rollouts, ensuring all units arrive ready for local setup with remote guidance where on-site installation is not available. The system supports Windows, Mac, Linux, and Android inputs via HDMI, USB-C, and DisplayPort, with USB-C ports offering 100W charging and network connectivity. An optional external camera can be mounted top-side, and the antibacterial tempered glass surface is designed for durability in high-traffic educational and corporate settings.
Key features
- High Precision Touch - Supports 50 simultaneous touch points with palm rejection and ±1mm accuracy using fingers or passive pens.
- Android 15 OS - Runs on the latest Android 15 with Google-EDLA certification for secure and integrated classroom apps.
- Connectivity Suite - Features WiFi 6E, integrated NFC, 10/100/1000 Mbps LAN, and USB-C ports with 100W charging.
- 4K IPS Display - Delivers 3840x2160 resolution with 500 cd/m² brightness and 178° viewing angles on an IPS panel.
- Durable Glass Surface - Equipped with antibacterial, anti-glare tempered glass with Mohs Level 7 hardness and a super glide finish.
Ideal for lecture halls, conference rooms, and smart classrooms requiring high-density touch input and wireless collaboration, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- HDMI Cable × 1, USB A-B Cable × 1, USB C Cable × 1, Power Cable × 1
- Channels
- 2.2
- Compatibility
- Windows 10, Linux, Mac, Android, Chrome
Display
- Backlight
- TFT LCD
- Brightness
- 500 cd/m²
- Colour depth
- 10bit
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Surface protection
- Anti-Glare Smooth Glass
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- 72%
- Contrast ratio
- 5500:1
- Display type
- 65”/75” – VA – Direct LED Backlight 86” – IPS – Direct LED Backlight
- Frequency response
- 32kHz
- Response time
- 5ms
Touch
- Palm rejection
- Yes
- Pen and touch differentiation
- Yes
- Touch accuracy
- ±1 mm
- Touch points
- 50 Points Multi Touch
- Touch resolution
- 32768 × 32768
- Touch response time
- ≤ 5 ms
- Touch technology
- Infrared
System
- Processor
- Quad Core A76 + Quad Core A55
- Graphics
- Mali G610 MC4
- OPS slot
- Optional
- Operating system
- Android 13
- RAM
- 8 GB
- Sensors
- Proximity
- Storage
- 128 GB
- Storage conditions
- -20˚ to 60˚
Connectivity
- Bluetooth
- Bluetooth 5.2
- DisplayPort
- Display Port In × 1
- Ethernet (RJ45)
- RJ45 (1000 Mbps Port) × 2
- HDMI input
- HDMI In × 3
- HDMI output
- HDMI Out × 1
- NFC card reader
- Yes
- Serial port
- RS232 × 1
- Touch USB ports
- USB Touch (type B) × 3
- USB-C functions
- Supports video, audio, touch, network, 100W charging
- USB-C
- Type-C × 2 (Front × 1; Side × 1)
- USB ports
- USB 2.0 × 3, USB 3.0 × 4
- Wake-on-LAN
- Yes
- Wi-Fi
- Wi-Fi 6E, 2.4G/5G
Camera & audio
- Audio in
- Audio In × 1
- Audio out
- Audio Out × 1
- Built-in camera
- Yes
- Camera
- Optional Extra
- Speaker output
- 2 × 20W Front Facing + 2 × 10W Subwoofer
- Speaker type
- Built-in Speakers
- Microphone
- 8-array
Physical & warranty
- In the box
- Remote Control, 2 Batteries, 2 Super Cool Stylus 2.0, User Guide, Quick Install Guide, WiFi Module, NFC Card
- Operating humidity
- 10%~90% RH
- Operating temperature
- 0 °C to 40 °C
- Power consumption
- < 116.75 W
- Standby power
- ≤ 0.3 W
- Dimensions
- 1957 × 1178 × 99 mm
- Weight
- 61.25 kg
- Shipping dimensions
- 2110 × 225 × 1304 mm
- VESA mount
- 800 × 600 mm (VESA)
- Warranty
- 5 years
- Shipping weight
- [65" / 75" / 86"] 44.5kg 59.9kg 72.8kg
- Input voltage
- 100 - 240V ~ 50/60Hz 3.5A
- Power output
- 95W
- Certifications
- EDLA Certified (Enterprise Device Licence Agreement)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which countries can the Clevertouch IMPACT Lux 2 be delivered to?
Smart-Boards ships this interactive flat panel to all GCC countries including the UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as to various African nations through established logistics partners.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For deliveries to other countries, units arrive ready for local setup with remote guidance available if needed to assist with initial configuration.
Does the display include built-in cameras or microphones?
This model does not include a built-in camera; it is an optional extra. The system features integrated speakers and audio in/out ports, with an optional top-mounted camera supported via the USB-C data port.
What operating systems are compatible with this panel?
The Clevertouch IMPACT Lux 2 runs on Android 15 natively. It also supports HDMI input from Windows, Mac, and Linux devices, and includes an OPS slot for Intel-based PC modules.
How many simultaneous users can write on the screen?
The HPIR touch frame supports 50 simultaneous touch points, allowing multiple educators or professionals to annotate, draw, or navigate the interface at the same time without latency.
What warranty and after-sales support is provided?
The product comes with the manufacturer's warranty, plus Smart-Boards after-sales support. Our team can confirm availability, assist with technical queries, and provide documentation for tender submissions.
Is pricing available for bulk or government tenders?
Pricing is quotation-only. We offer specific options for education, government, and bulk tenders, ensuring competitive rates for multi-site rollouts across the GCC and African regions.
