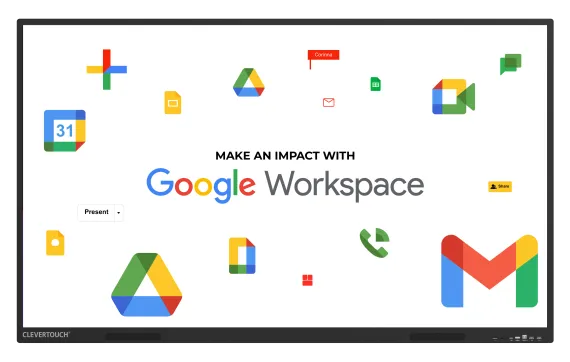

The Clevertouch IMPACT Lux 2 75" is a 4K interactive flat panel featuring Android 15, 50-point HPIR touch, and WiFi 6E connectivity. This Google-EDLA-certified display supports simultaneous writing with palm rejection. Smart-Boards supplies this unit across the GCC and Africa with installation and support options.
This interactive display combines a 75-inch 4K UHD screen with robust connectivity for diverse AV environments. It features an RK3588 main board and an integrated OPS slot for PC expansion. The screen utilizes anti-glare, antibacterial tempered glass with a Mohs Level 7 hardness rating to ensure durability in high-traffic areas. Brightness reaches 500 cd/m² with a 5500:1 contrast ratio for clear visibility.
Interaction is handled by a high-precision IR touch frame supporting 50 simultaneous touch points on both Android and Windows. The panel includes WiFi 6E, Bluetooth 5.2, and multiple USB-C ports with 100W charging capability. Integrated NFC technology and a suite of classroom apps enhance usability. Smart-Boards provides this model with manufacturer warranty and regional logistics for multi-site deployments.
Key features
- Touch Performance - Supports 50 simultaneous touch points with ±1mm accuracy and palm rejection using fingers or passive pens.
- Connectivity Options - Includes 3 HDMI inputs, 1 DisplayPort, RJ45 LAN, RS-232, and USB-C ports with video, audio, and 100W charging.
- Wireless Standards - Features integrated WiFi 6E (802.11ax) with 2x2 MIMO and Bluetooth 5.2 for stable wireless connections.
- Screen Durability - Utilizes heat-tempered, antibacterial AG glass with a Mohs Level 7 hardness rating and low parallax design.
- Operating System - Runs Android 15 with Google EDLA certification and includes essential apps like whiteboard, media player, and browser.
Ideal for interactive classrooms, corporate boardrooms, and training centers across the GCC and Africa requiring reliable 4K visuals and multi-point touch.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- HDMI Cable × 1, USB Cable (A-B) × 1, USB C Cable × 1, Power Cable × 1
- Channels
- 2.2
- Compatibility
- Windows 10, Linux, Mac, Android, Chrome
Display
- Backlight
- TFT LCD
- Brightness
- 500 cd/m²
- Colour depth
- 10bit
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 75"
- Surface protection
- Anti-Glare Smooth Glass
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- 72%
- Contrast ratio
- 5500:1
- Display type
- 65”/75” – VA – Direct LED Backlight 86” – IPS – Direct LED Backlight
- Frequency response
- 32kHz
- Response time
- 5ms
Touch
- Palm rejection
- Yes
- Pen and touch differentiation
- Yes
- Touch accuracy
- ±1 mm
- Touch points
- 50 Points Multi Touch
- Touch resolution
- 32768 × 32768
- Touch response time
- ≤ 5 ms
- Touch technology
- Infrared
System
- Processor
- Quad Core A76 + Quad Core A55
- Graphics
- Mali G610 MC4
- OPS slot
- Optional
- Operating system
- Android 13
- RAM
- 8 GB
- Sensors
- Proximity
- Storage
- 128 GB
- Storage conditions
- -20˚ to 60˚
Connectivity
- Bluetooth
- Bluetooth 5.2
- DisplayPort
- Display Port In × 1
- Ethernet (RJ45)
- RJ45 × 2
- HDMI input
- HDMI In × 3
- HDMI output
- HDMI Out × 1
- NFC card reader
- Yes
- Serial port
- RS232 × 1
- Touch USB ports
- USB Touch (type B) × 3
- USB-C functions
- Supports video, audio, touch, network, 100W charging
- USB-C
- Type-C × 2 (Front × 1; Side × 1)
- USB ports
- USB-A 2.0 × 3, USB-A 3.0 × 4, USB-C Out × 1, USB-C Top × 1
- Wake-on-LAN
- Yes
- Wi-Fi
- Wi-Fi 6E, 2.4G/5G
Camera & audio
- Audio in
- Audio In × 1
- Audio out
- Audio Out × 1
- Built-in camera
- Yes
- Camera
- Optional Extra
- Speaker output
- 2 × 20 W Front Facing + 2 × 10 W Subwoofer
- Speaker type
- Built-in Speakers
- Microphone
- 8-array
Physical & warranty
- In the box
- Remote Control, Batteries for Remote Control × 2, Super Cool Stylus 2.0 × 2, User Guide, Quick Install Guide, WiFi Module 2.0 + WAP, NFC Card
- Operating humidity
- 10%~90% RH
- Operating temperature
- 0 °C to 40 °C
- Power consumption
- 103.34 W
- Standby power
- ≤ 0.3 W
- Dimensions
- 1709 × 1039 × 86 mm
- Weight
- 49.95 kg
- Shipping dimensions
- 1863 × 225 × 1155 mm
- VESA mount
- 800 × 400 mm (VESA)
- Warranty
- 5 Years
- Shipping weight
- [65" / 75" / 86"] 44.5kg 59.9kg 72.8kg
- Input voltage
- 100 - 240V ~ 50/60Hz 3.5A
- Power output
- 95W
- Certifications
- EDLA Certified (Enterprise Device Licence Agreement)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which countries can this panel be delivered to?
Smart-Boards ships the Clevertouch IMPACT Lux 2 to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations through established logistics partners.
Is on-site installation available outside the UAE?
No, on-site installation is available only within the UAE. For other countries, the unit is delivered ready for local setup with remote guidance provided if needed.
Does this model include a camera?
No, the camera is an optional extra and is not included with the standard Clevertouch IMPACT Lux 2 75-inch panel.
What is the touch technology used?
It uses High Precision IR (HPIR) technology with a material classification sensor, supporting up to 50 simultaneous touch points with ±1mm accuracy.
Does it support wireless screen sharing?
Yes, the panel includes integrated NFC technology and WiFi 6E to facilitate wireless connectivity and screen sharing from compatible devices.
Can I add a PC module?
Yes, the panel features one Intel Spec 80Pin OPS slot for adding a compatible Windows PC module for expanded computing capabilities.
Is Google EDLA certification included?
Yes, the Clevertouch IMPACT Lux 2 is Google-EDLA-certified, ensuring access to Google Play services and certified Android apps.
