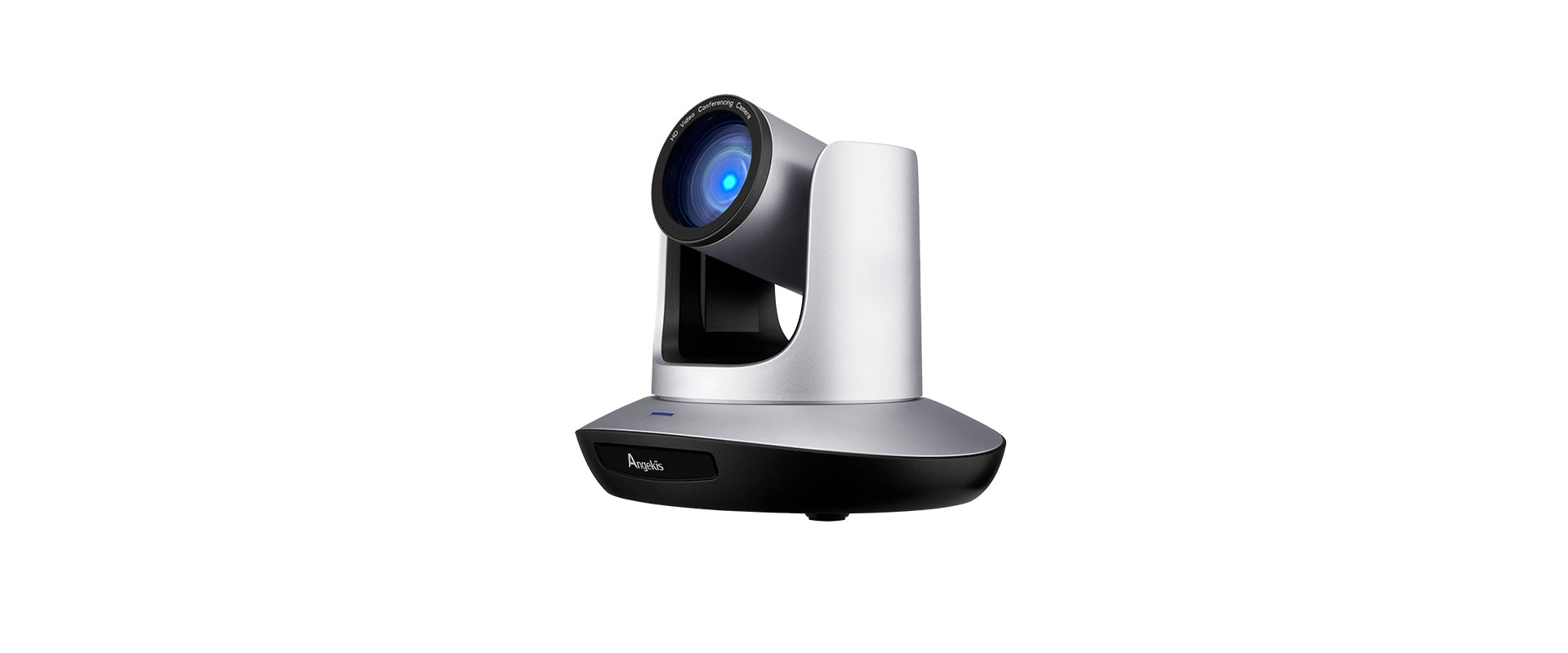

The Angekis Saber IP20X (IP-20FHD60) is a 2.4MP PTZ conference camera featuring 20x optical zoom and 60° HFOV. Designed for clear video conferencing, it is supplied by Smart-Boards across the GCC and Africa with installation support in the UAE and remote guidance elsewhere.
This 2.4MP CMOS camera delivers 1080p video at 60fps with 20x optical and 2x digital zoom. The 60° horizontal field of view captures wide meeting spaces effectively. With a minimum lux of 0.01, it performs well in low-light environments. The unit supports auto and manual focus, white balance, and noise reduction for consistent image quality.
Connectivity options include HDMI, RJ45, SDI, and USB 3.0/2.0 for flexible integration. It supports RS232, RS485, and VISCA over IP for control via network or serial. The camera handles TCP/IP, ONVif 2.4, and SRT protocols for streaming. Power is supplied via DC 12V or PoE, making it suitable for various AV setups in corporate and educational sectors.
Key features
- Optical Zoom - Features 20x optical zoom and 2x digital zoom with a focal length of 4.9mm to 98mm.
- Image Sensor - Uses a 1/2.8 inch 2.4MP CMOS sensor with >50dB SNR and 2D/3D noise reduction.
- Pan and Tilt - Provides -170° to +170° pan and -30° to +90° tilt with speeds up to 120°/s.
- Connectivity - Offers HDMI, RJ45, SDI, USB 3.0, and USB 2.0 ports for versatile video output.
- Control Protocols - Supports RS232, RS485, VISCA over IP, and ONVif 2.4 for standard control integration.
Ideal for boardrooms, lecture halls, and remote meeting spaces, this camera suits buyers across the GCC and Africa seeking reliable video conferencing hardware.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Product type
- Camera
- Brand
- Angekis
- Key features
- POE, WDR, 3D Noise Reduction, UltraOptix Digital Noise Reduction, IP livestreaming, NDI, HX support, simultaneous outputs, 10 camera presets via IR remote, 128 presets via VISCA control, belt drive technology, supports H.264 and H.265 encoding, automatic access to IP address, special focusing algorithm, compatible with Windows, Mac OS, Chromebook
- Compatibility
- Adobe Connect, BlueJeans, CyberLink U Meeting, Cisco Webex, Google Hangouts, GoToMeeting, Intel Unite, Microsoft Lync, Skype, Skype for Business, V-Cube, vMix, WebRTC, Wirecast, XSplit
- Controls
- IR remote (10 presets), RS-232/RS-485 (VISCA/Pelco), 128 presets via VISCA
- Protocols
- TCP/IP, HTTP, DHCP, RTSP, RTMP, ONVIF 2.4, VISCA over IP, NDI|HX, SRT
- Additional features
- Smooth PTZ mechanical design, reverse mountable, RS232 serial daisy chain, 2D and 3D noise reduction, WDR, BLC, low light ability (0.01 lux), simultaneous output via IP, HDMI, SDI, USB 3.0, desktop app control, Far End Camera Control (FECC) via USB 3.0, up to 128 presets via RS232
Display
- Resolution
- Full HD
Connectivity
- Connectivity options
- HDMI, RJ45, SDI, USB 3.0, USB 2.0, RS232, RS485
Camera & audio
- Camera resolution
- Full HD
- Field of view
- 60°
- Zoom
- Optical zoom 20x, Digital zoom 2x
Physical & warranty
- Mounting type
- Reverse mountable, standard tripod screw, wall mount (optional), ceiling mount (optional)
- In the box
- IR Remote Controller
- Operating temperature
- -5 to 45 °C
- Power consumption
- 24 W (max)
- Weight
- 1.47 kg
- Shipping dimensions
- 310 x 265 x 280 mm
- Warranty
- 3 years
- Mounting option
- wall mount, ceiling mount, tripod
- Power source
- DC 12 V, 2 A
- Dimensions
- 220mm x 190mm x 173mm
- Included accessories
- IR remote
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Angekis IP20X support network control?
Yes, it supports VISCA over IP via TCP/UDP and ONVif 2.4. It also allows control through RS232 and RS485 serial connections for standard AV integration.
What is the minimum lighting requirement?
The camera operates in low light with a minimum lux of 0.01. It includes auto and manual white balance modes to adjust to different indoor or outdoor environments.
Which countries can this be delivered to?
Smart-Boards ships to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as selected African nations through established logistics partners.
Is installation available outside the UAE?
On-site installation is available within the UAE only. For other countries, the unit is delivered ready for local setup with remote guidance if needed.
What power options are supported?
The camera accepts DC 12V input and supports PoE (Power over Ethernet). This allows flexible power sourcing depending on the AV infrastructure at the site.
Can it be used for live streaming?
Yes, it supports RTSP, RTMP, and SRT protocols. This enables direct IP streaming for live broadcasting or integration with video conferencing platforms.
How do I get pricing?
Pricing is by quotation only. Smart-Boards provides quote-only pricing with options for education, government, bulk, and tender requirements across the region.
