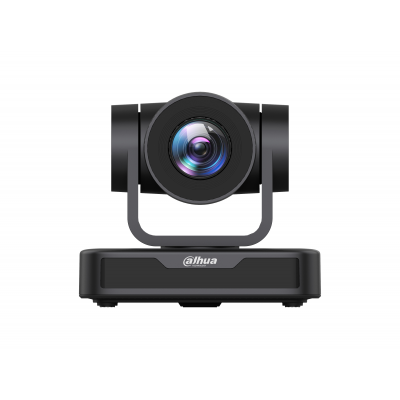

The Dahua PKP-UC10A is a dedicated USB camera accessory designed for interactive flat panel systems. It provides high-definition video capture with a 2 MP CMOS sensor and supports PTZ control for flexible viewing angles. Smart-Boards supplies this unit for AV integrations across the GCC and Africa.
This Dahua unit delivers 1080p clarity at 30 fps, suitable for professional conferencing and digital signage contexts. The 10X digital zoom and wide vertical tilt range allow precise framing of presenters or content. Its USB 2.0 interface ensures straightforward connectivity, while the 2D/3D noise reduction maintains image quality in varied lighting conditions. The device operates on 12 V power, fitting standard AV rack setups.
Smart-Boards stocks this accessory for projects in the UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as African markets. We support multi-site rollouts with logistics partners to deliver ready-to-setup units. Installation within the UAE is handled by our team, while other regions receive guidance for local configuration. The unit includes a remote control and power adapter for immediate deployment.
Key features
- High-Definition Capture - Features a 2 MP CMOS sensor delivering 1920 × 1080 resolution at frame rates up to 30 fps for clear video output.
- PTZ Control - Horizontal pan range of –170° to +170° and pitch tilt of –30° to +30° allow precise framing of speakers or content.
- Digital Zoom Capability - Supports 10X digital zoom, enabling closer views of distant subjects or text without losing connection to the host system.
- Image Adjustment - Includes automatic/manual white balance, brightness, contrast, and 2D/3D noise reduction for optimal image clarity in different environments.
- Remote Control Support - Comes with a remote control for quick access to 10 preset positions, with up to 255 user-defined presets available via RS 232.
Ideal for: Interactive flat panels in meeting rooms and lecture halls, suitable for buyers across the GCC and Africa requiring reliable video capture accessories.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Rotation range
- Pan ±170°, tilt ±30°
- Product type
- Camera
- Brand
- Dahua
- Key features
- Advanced auto-focus, low noise CMOS sensor, 2D and 3D noise reduction, VISCA, Pelco-D, Pelco-P protocol support, quiet PTZ, 255 preset positions
- Signal-to-noise ratio
- >50 dB
- Additional features
- advanced auto-focus, low noise CMOS sensor, 2D and 3D noise reduction, VISCA, Pelco-D, Pelco-P protocol support, quiet PTZ, 255 preset positions
Display
- Resolution
- Full HD
System
- Storage conditions
- -10 to 60 °C, 20% to 80% RH
Connectivity
- Connectivity options
- USB, RS232, RS485
Camera & audio
- Camera
- 2 MP CMOS, 1920 x 1080 max, 66° (H) wide angle
- Camera resolution
- Full HD
- Field of view
- 8.8°–66°
- Zoom
- Optical zoom 10x, Digital zoom 10x
Physical & warranty
- In the box
- Camera, Power adapter, Remote control, USB 2.0 video cable, Users' manual, Warranty card, Packing list
- Operating humidity
- 20% to 80% RH
- Operating temperature
- -10 to 50 °C
- Power consumption
- 5 W (max)
- Dimensions
- 156.8 x 112.6 x 139 mm
- Weight
- 1.0 kg (product)
- Shipping dimensions
- 320 x 240 x 180 mm
- Input voltage
- 12 V DC
- Dimensions
- 156.8 mm × 112.6 mm × 139.0 mm (product), 320.0 mm × 240.0 mm × 180.0 mm (package)
- Included accessories
- camera, power adapter, remote control, USB 2.0 video cable, users' manual, warranty card, packing list
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Dahua PKP-UC10A include a remote control?
Yes, the packaging list includes a remote control for accessing preset positions and basic camera adjustments.
What is the maximum digital zoom on this camera?
The device supports 10X digital zoom, allowing users to magnify the image without moving the physical camera unit.
Which countries can receive this product?
Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and selected African nations via established logistics partners.
Is on-site installation available outside the UAE?
No, on-site installation is limited to the UAE. Other regions receive delivery ready for local setup with remote guidance if needed.
What power supply does the camera require?
The camera operates on 12 V DC power, supplied via the included power adapter and HEC3800 power socket.
Can the camera be controlled via RS 232?
Yes, the unit features an RS 232 control port supporting VISCA, Pelco-D, and Pelco-P protocols for advanced integration.
What is included in the packaging?
The box contains the camera, power adapter, remote control, USB 2.0 video cable, user manual, warranty card, and packing list.
