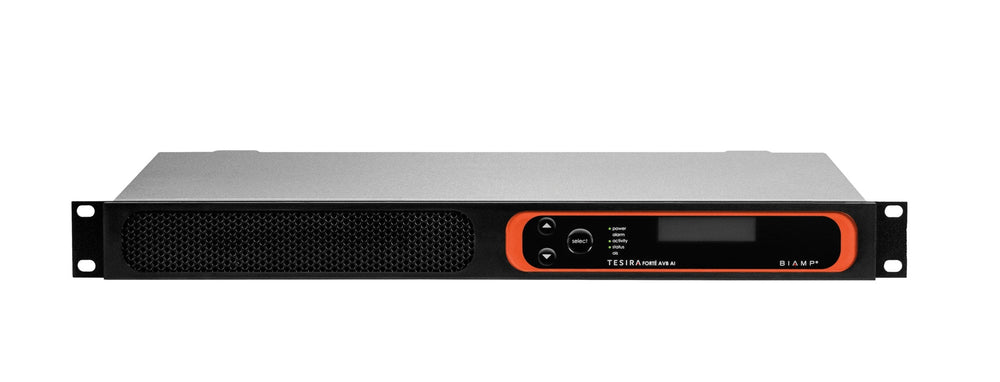

The Biamp TesiraFORTÉ AVB AI (920-00396-00001) is a high-density audio DSP designed for complex conferencing and presentation environments. Featuring 128x128 AVB channels and 12 mic/line inputs, it supports scalable audio networking. Smart-Boards supplies this unit across the GCC and Africa with expert integration support.
This digital signal processor delivers professional-grade audio performance for conferencing and sound reinforcement systems. It supports up to 128x128 AVB channels, allowing large-format audio networking across intricate installations. The device includes 12 mic/line inputs and 8 mic/line outputs, providing the flexibility required for multi-room and multi-zone applications in diverse corporate or educational settings.
Connectivity is managed via Gigabit Ethernet, RS-232, and GPIO ports, ensuring reliable communication with control systems and automation platforms. A two-line OLED display with capacitive-touch navigation offers intuitive access to diagnostics and system information. The unit operates on 100–240 V AC power, consumes less than 35 W, and weighs 3.63 kg. It holds TAA, FCC, CE, UL/C-UL, RCM, and RoHS certifications, backed by a 5-year manufacturer warranty.
Key features
- High-Density Processing - Supports 128x128 AVB channels for scalable audio networking in complex installations.
- Flexible I/O Configuration - Includes 12 mic/line inputs and 8 mic/line outputs with +48 V phantom power for versatile device integration.
- Network and Control Integration - Features Gigabit Ethernet, RS-232, and GPIO ports for stable connection to automation and control systems.
- Intuitive Local Interface - Equipped with a two-line OLED display and capacitive-touch navigation for direct system monitoring and access.
- Comprehensive Certification - Certified TAA, FCC Part 15B, CE, UL/C-UL, RCM, and RoHS for global compliance and safety standards.
Ideal for schools, universities, ministries, NGOs, and companies requiring scalable conferencing audio DSPs across multiple sites in the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TesiraFORTÉ AVB AI
- Product type
- Audio DSP
- Key features
- 128 × 128 AVB channels, 12 mic/line inputs, 8 mic/line outputs, Gigabit Ethernet, RS-232, GPIO, OLED touch navigation, Tesira software DSP, Biamp Workplace Ready, TAA compliant
- Channels
- 128 × 128 AVB channels
- Dynamic range
- > 108 dB (0 dB gain)
- Impedance
- 8 kΩ (balanced)
Display
- Display
- Two-line OLED with capacitive-touch navigation
- Frequency response
- 20 Hz to 20 kHz, +0.25 dB / -0.5 dB
Connectivity
- Inputs
- 12 mic/line inputs
- Outputs
- 8 mic/line outputs
- Connectivity options
- Gigabit Ethernet, RS-232, GPIO
Camera & audio
- THD
- < 0.006% (0 dB gain, +4 dBu input)
Physical & warranty
- Operating temperature
- 0 to 40 °C
- Power consumption
- < 35 W
- Weight
- 3.63 kg
- Warranty
- 5 years
- Input voltage
- 100–240 V AC, 50/60 Hz
- Phantom power
- +48 V DC (7 mA per input)
- Certifications
- TAA, FCC Part 15B, CE, UL/C-UL, RCM, RoHS
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can this DSP be delivered to African countries?
Yes. Smart-Boards ships to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations through established logistics partners, ensuring delivery to your location.
Do you provide on-site installation in Africa?
No. On-site installation is available within the UAE only. For other countries, the unit is delivered ready for local setup with remote guidance if needed.
What is the warranty period for this device?
The Biamp TesiraFORTÉ AVB AI comes with a comprehensive 5-year manufacturer warranty, supplemented by Smart-Boards after-sales support.
Is this product TAA compliant?
Yes, the device holds TAA certification, making it suitable for government and tender requirements where compliance is mandatory.
Does it support Biamp Workplace Ready?
Yes, the unit is Biamp Workplace Ready, ensuring optimized performance and integration with modern workplace conferencing environments.
How do I get pricing for this DSP?
Pricing is quote-only. Contact Smart-Boards for quotation, which includes options for education, government, bulk, and tender discounts based on your region.
Can I request a demonstration before purchase?
Yes, Smart-Boards offers live or virtual demonstrations before purchase to help you verify the product's suitability for your specific project requirements.
