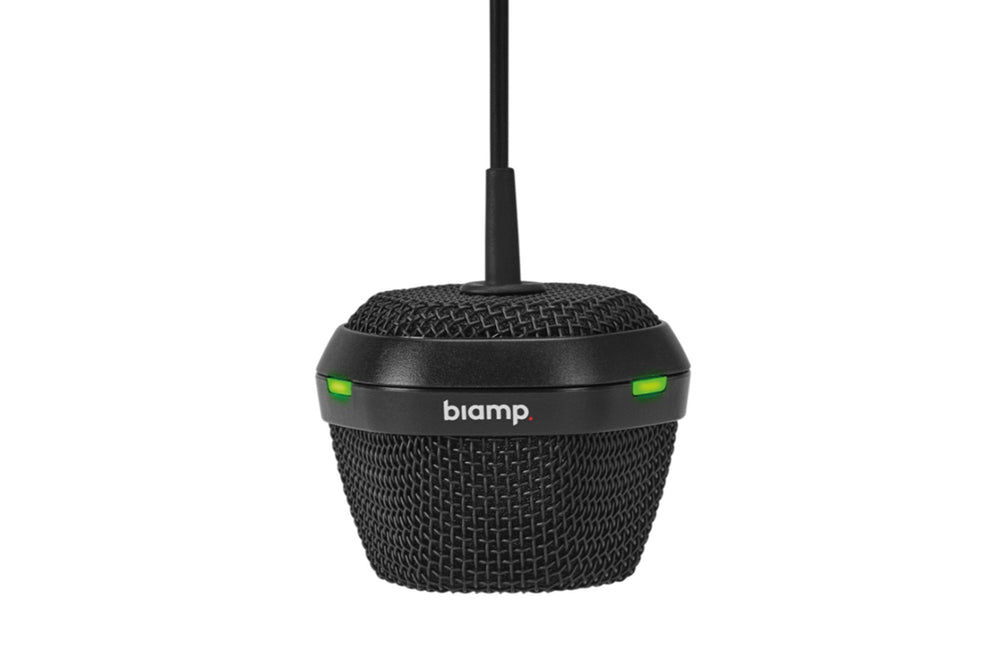

The Biamp Parlé TCM-1EX is an expansion pendant microphone designed to extend the coverage of a main Parlé system. Featuring an 8-element digital array and beamformed tracking, it supports up to three units in a daisy chain. Smart-Boards supplies this device for video conferencing deployments across the GCC and Africa.
This black expansion unit connects via RJ-45 to a compatible main pendant microphone, allowing flexible room configurations. It utilizes beamtracking technology to intelligently mix conversations within its three 120-degree zones, providing comprehensive 360-degree pickup. The device weighs 0.2 kg and requires a primary TCM-1 or TCM-1A microphone to function, making it ideal for scaling existing setups.
Built for durability and safety, the TCM-1EX is UL 2043 evaluated for use in air-handling spaces and holds TAA compliance. It features a dynamic range of 92 dB and sensitivity greater than 70 dB. Smart-Boards offers this product with a 5-year warranty, providing on-site installation in the UAE and delivery-ready units for other GCC and African countries.
Key features
- Digital Array - An 8-element digital array provides a dynamic range of 92 dB and frequency response from 150 Hz to 16 kHz.
- Beamtracking - Beamformed technology actively tracks and mixes conversations across three 120-degree zones for 360-degree coverage.
- Daisy-Chain Link - Connects via RJ-45 to allow up to three expansion microphones in a single chain for larger room coverage.
- Air-Space Rated - Evaluated to UL 2043 requirements, making it suitable for installation in plenums and air-handling spaces.
- TAA Compliant - Meets the US Trade Agreement Act requirements, supporting procurement for government and educational tender projects.
- Warranty Coverage - Includes a 5-year manufacturer warranty backed by Smart-Boards after-sales support for the region.
Ideal for large conference rooms requiring extended pickup range, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- Parlé TCM-1EX
- Product type
- Expansion Pendant Microphone
- Key features
- Beamtracking, 360-degree pickup, daisy-chain expansion, TAA compliant
- Compatibility
- Requires a compatible main pendant microphone
- Connector type
- Custom 2-pin, 10 ft (3 m) cable
- Dynamic range
- 92 dB, A-weighted
- Expansion
- Up to three microphones per daisy chain
- Polar pattern
- Beamformed, three 120-degree zones
- Sensitivity
- > 70 dB (94 dB SPL, 1 kHz)
Display
- Colour
- Black
- Frequency response
- 150 Hz – 16 kHz (±3 dB)
Connectivity
- Connectivity options
- RJ-45 daisy-chain to main or expansion plenum box
Camera & audio
- Max SPL
- 106 dB (at 0.5% THD)
- Microphone
- 8-element digital array
Physical & warranty
- Weight
- 0.2 kg (microphone); 0.4 kg (plenum box)
- Warranty
- 5 years
- Certifications
- FCC Part 15B, CE, UL / C-UL, RoHS, UL 2043 (air-handling), TAA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can this microphone operate independently?
No, the TCM-1EX is an expansion unit that must be connected to a compatible main pendant microphone, such as the Parlé TCM-1 or TCM-1A, to function.
Which countries can receive this product?
Smart-Boards ships to all GCC countries and selected African nations through established logistics partners, ensuring the lowest possible cost for delivery.
Is installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, units are delivered ready for local setup with remote guidance if needed.
Is it safe for ceiling plenums?
Yes, the device is evaluated to UL 2043 requirements and is suitable for use in air-handling spaces and plenums.
What is the maximum number of units?
You can daisy-chain up to three TCM-1EX microphones together to extend the coverage area of the primary microphone.
Does it support tender requirements?
Yes, the product is TAA compliant and meets FCC, CE, and RoHS standards, supporting various government and educational tender specifications.
How is pricing handled?
Pricing is by quotation only, with options for education, government, and bulk tenders confirmed upon request to the Smart-Boards team.
