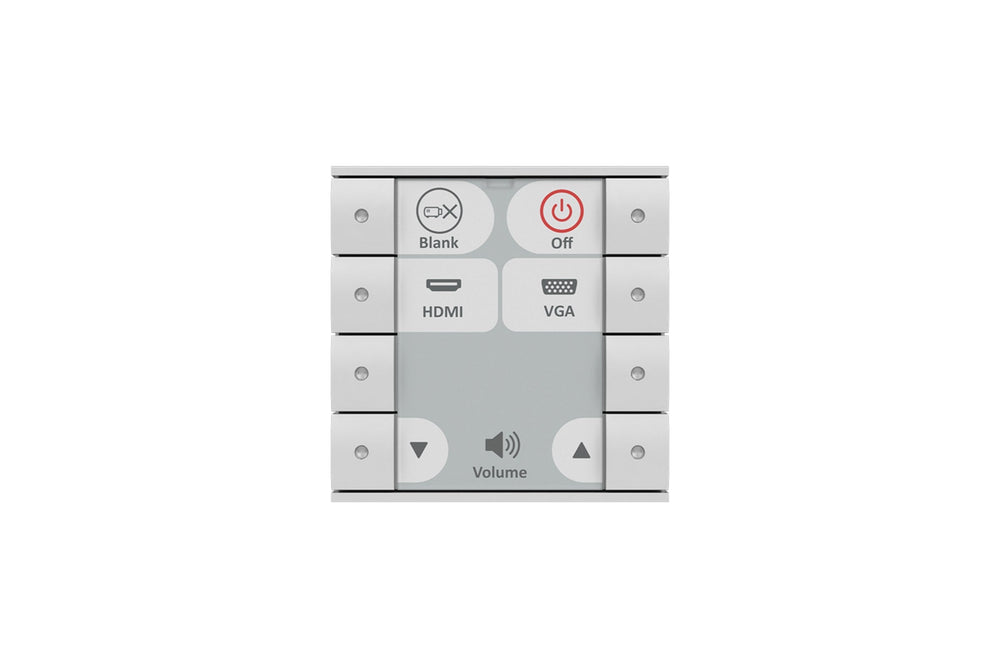

The Biamp Impera Echo 8EUW is a white room control keypad designed for AV system management. It features eight software-configurable buttons and three GPIO ports for device integration. Smart-Boards supplies this unit across the GCC and Africa.

This Biamp unit provides direct hardware access to Impera system functions without requiring an external processor. The white enclosure houses eight mechanical buttons with multi-colour LEDs, allowing users to toggle inputs or adjust volume. Power is supplied via 12 V DC, consuming 5 W while operating in rooms between 0 and 40 °C. The onboard controller handles logic locally, ensuring reliable performance for daily room bookings.

Integration relies on multiple serial and GPIO connections, including one bidirectional and one unidirectional RS-232/IR port. Three open-drain GPIO ports allow control of external equipment, while expansion bus support enables up to two additional keypads. Configuration is performed via Micro USB, and the system supports email alerts for maintenance. Smart-Boards offers this device with manufacturer warranty and after-sales support for clients in the region.

Key features

• Configurable Controls - Features eight software-configurable mechanical buttons with multi-colour LEDs for custom room functions.
• Serial Connectivity - Includes one bidirectional and one unidirectional RS-232/IR port for third-party device feedback.
• GPIO Expansion - Provides three open-drain GPIO ports for controlling external AV hardware and lighting systems.
• System Configuration - Allows local setup and maintenance updates through a Micro USB connection without external tools.
• Maintenance Alerts - Sends email notifications for lamp hours and filter changes to ensure proactive room upkeep.
• Expandable Bus - Supports up to two additionalkeypads or port expanders via the expansion bus connection.
• Power Requirements - Operates on 12 V DC input with a maximum power consumption of 5 W.

Ideal for: Suitable for schools, universities, and corporate offices in the GCC and Africa requiring reliable hardware control for video conferencing rooms.
