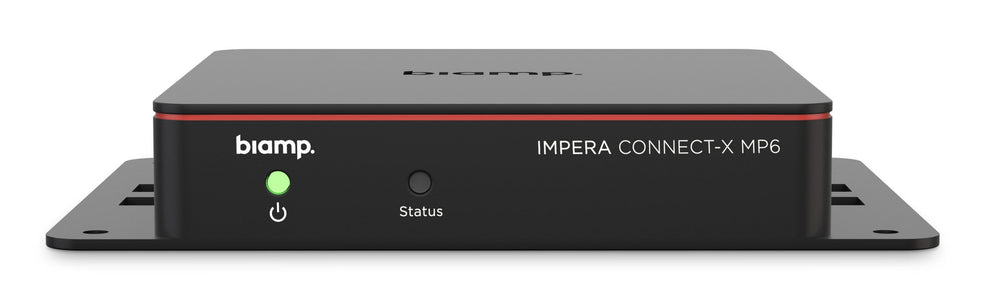

The Biamp Impera Connect-X MP6 (910-00275) is an Ethernet control extender designed for workplace automation and room booking systems. It provides LAN control of two IP devices alongside serial and GPIO outputs. Smart-Boards supplies this hardware for multi-site AV rollouts across the GCC and Africa.
This 110 g device simplifies installation by utilizing IEEE 802.3at Class 1 PoE over a single CAT5e or CAT6 cable, eliminating the need for separate power supplies. It features one bidirectional and two unidirectional RS-232/IR ports, enabling robust communication with displays and amplifiers. The unit supports 10/100 Mbps Ethernet with autosense, ensuring reliable connectivity in diverse network environments while maintaining a lightweight profile suitable for discreet mounting.
Smart-Boards acts as an authorised reseller, providing this Biamp component to schools, ministries, and corporations across the GCC and Africa. We offer live or virtual demonstrations to verify compatibility with existing infrastructure. Pricing is available by quotation, with options for education, government, and bulk tender orders. Delivery times vary by country and order size, confirmed during the quote process, ensuring clear logistical planning for regional deployments.
Key features
- Serial Connectivity - Includes 1 bidirectional and 2 unidirectional RS-232/IR ports for comprehensive device control.
- Power over Ethernet - Powered via IEEE 802.3at Class 1 (4 W) for simplified single-cable installation.
- GPIO Expansion - Features 3 GPIO ports to interface with external hardware and sensors.
- IP Device Control - Enables LAN control of up to 2 additional IP devices through the network.
- Mounting Options - Secured using mounting screws, zip ties, or double-sided tape for flexible placement.
Ideal for: Integrating room booking systems and workplace control in educational and corporate environments across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- Impera Connect-X MP6
- Product type
- Ethernet Control Extender
- Key features
- 3 RS-232/IR ports, 3 GPIO ports, LAN control of 2 IP devices, PoE, 10/100 Mbps Ethernet, 110 g
- PoE
- IEEE 802.3at Class 1, 4 W
Connectivity
- Ethernet (RJ45)
- 10/100 Mbps, autosense
- Serial port
- 1 bidirectional, 2 unidirectional (RS-232/IR)
- Outputs
- Up to 24 V DC, 500 mA per I/O
- Ports
- RS-232/IR × 3, GPIO × 3
Physical & warranty
- Mounting type
- Screws, zip ties or double-sided tape
- In the box
- Mounting screws, zip ties
- Weight
- 110 g
- Warranty
- 5 years
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Biamp Impera Connect-X MP6 support PoE?
Yes, it utilizes IEEE 802.3at Class 1 PoE (4 W), allowing power and data transmission over a single CAT5e or CAT6 cable for simplified installation.
Which countries receive delivery from Smart-Boards?
We ship to GCC nations including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as African countries, using established logistics partners to ensure cost-effective delivery.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, the unit is delivered ready for local setup, with remote guidance available if needed.
What warranty covers this control extender?
The product includes a 5-year manufacturer warranty, backed by Smart-Boards' after-sales support for technical assistance and service coordination.
Can I get a demonstration before purchasing?
Yes, we offer live or virtual demonstrations to help you verify compatibility and functionality before finalizing your quotation and order.
What is included in the box?
The package contains the control extender unit, mounting screws, and zip ties for secure installation.
How many IP devices can it control?
The device supports LAN control of up to 2 additional IP devices, allowing for expanded automation capabilities in the room.
