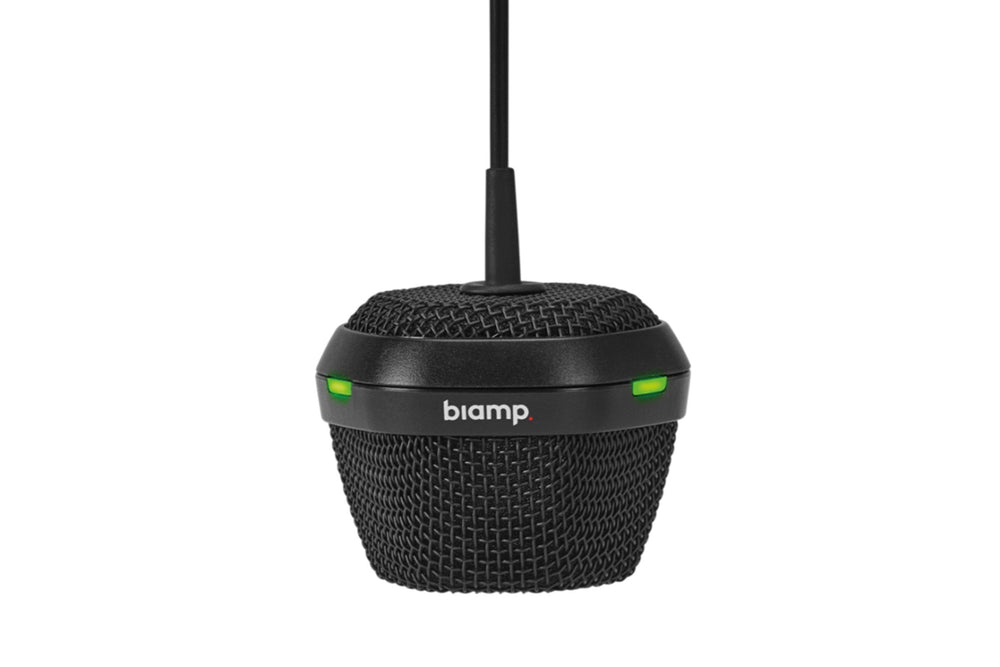

The Biamp Devio DCM-1 is a black pendant conferencing microphone featuring Beamtracking technology for intelligent voice mixing. It provides 360-degree coverage through three 120-degree zones and connects via RJ-45 daisy-chain. Smart-Boards supplies this unit for educational and corporate AV installations across the GCC and Africa.
Designed for integration with Biamp Devio SCR-20 and SCR-25 systems, this black microphone utilises Beamtracking to actively track and mix conversations around a table. The device features three selectable LED mute indicators and four elevation angle modes to adapt to different room geometries. Weighing 0.17 kg, it is suspended via a user-adjustable height mechanism, ensuring optimal placement for clear audio capture in video conferencing environments.
Installation is streamlined through single-cable RJ-45 connectivity, allowing up to two microphones to be daisy-chained in a single line. The unit operates on phantom power from the SCR-20/SCR-25 system, consuming less than 1 W. Certified to UL 2043 standards, it is suitable for installation in air handling spaces, meeting TAA compliance requirements for government and tender specifications in the GCC region.
Key features
- Beamtracking Audio - Actively tracks and intelligently mixes conversations around the table using three 120-degree zones for 360 degrees of coverage.
- RJ-45 Daisy Chain - Connects via RJ-45 single-cable installation, supporting a maximum of two microphones per daisy-chain line.
- Adjustable Mounting - Features user-adjustable height and four selectable elevation angle modes to suit various ceiling configurations.
- Visual Status - Includes three LED mute indicators to provide clear visual status of the microphone state during meetings.
- Air Handling Safe - Evaluated to UL 2043 requirements, making it suitable for use in plenum and air handling spaces.
Ideal for conference rooms, boardrooms, and huddle spaces requiring 360-degree audio coverage, suitable for buyers across the GCC and Africa seeking TAA-compliant AV infrastructure.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- Devio DCM-1
- Product type
- Pendant Microphone
- Key features
- Beamtracking, three 120-degree zones, three LED mute indicators, four elevation modes, single-cable installation, daisy-chain RJ-45, TAA compliant
- Compatibility
- Devio SCR-20 and SCR-25 systems
- Connector type
- RJ-45
- Controls
- Three LED mute indicators, user-adjustable height, four elevation angle modes
- Coverage pattern
- Three 120-degree zones (360 degrees)
Display
- Colour
- Black
Connectivity
- Connectivity options
- RJ-45 daisy-chain, up to two microphones per chain
Physical & warranty
- Mounting type
- Pendant; optional tile bridge accessory
- Operating temperature
- 0 to 40 °C
- Power consumption
- < 1 W
- Weight
- 0.17 kg (pendant microphone); 0.39 kg (plenum box)
- Warranty
- 2 years
- Power source
- Phantom power from SCR-20/SCR-25
- Certifications
- TAA compliant, FCC Part 15B, CE, UL and C-UL, RoHS, UL 2043 (air handling spaces)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Biamp Devio DCM-1 support daisy-chaining?
Yes, the microphone connects via RJ-45 and supports daisy-chaining, allowing a maximum of two microphones per chain. This simplifies installation by using single-cable connectivity for power and audio data from the SCR-20 or SCR-25 system.
Is the DCM-1 suitable for drop ceilings?
Yes, it is designed as a pendant microphone. An optional tile bridge mounting accessory is available for secure installation in standard drop ceiling tiles. The unit can also be mounted directly, depending on the specific ceiling structure.
Can I use this microphone with other Biamp systems?
No, the Devio DCM-1 is specifically compatible with the Devio SCR-20 and SCR-25 conferencing systems. It draws phantom power from these specific controllers and requires their software ecosystem for full Beamtracking functionality.
Is the Biamp Devio DCM-1 TAA compliant?
Yes, the product is compliant with the US Trade Agreement Act (TAA). This certification makes it eligible for government and public sector tenders in the GCC and international markets that require TAA-compliant AV equipment procurement.
What is the warranty period for this microphone?
The Biamp Devio DCM-1 comes with a 2-year manufacturer warranty. Smart-Boards provides this warranty along with after-sales support for customers purchasing through our authorised reseller network in the GCC and Africa.
Which countries can be delivered to?
We ship to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as African nations. Delivery times depend on the country and order size, confirmed via quotation, with logistics handled through established partners.
Do you offer installation outside the UAE?
On-site installation is available within the UAE only. For other countries, we supply the product ready for local setup. We provide remote guidance if needed to ensure correct pendant mounting and RJ-45 daisy-chain configuration.
