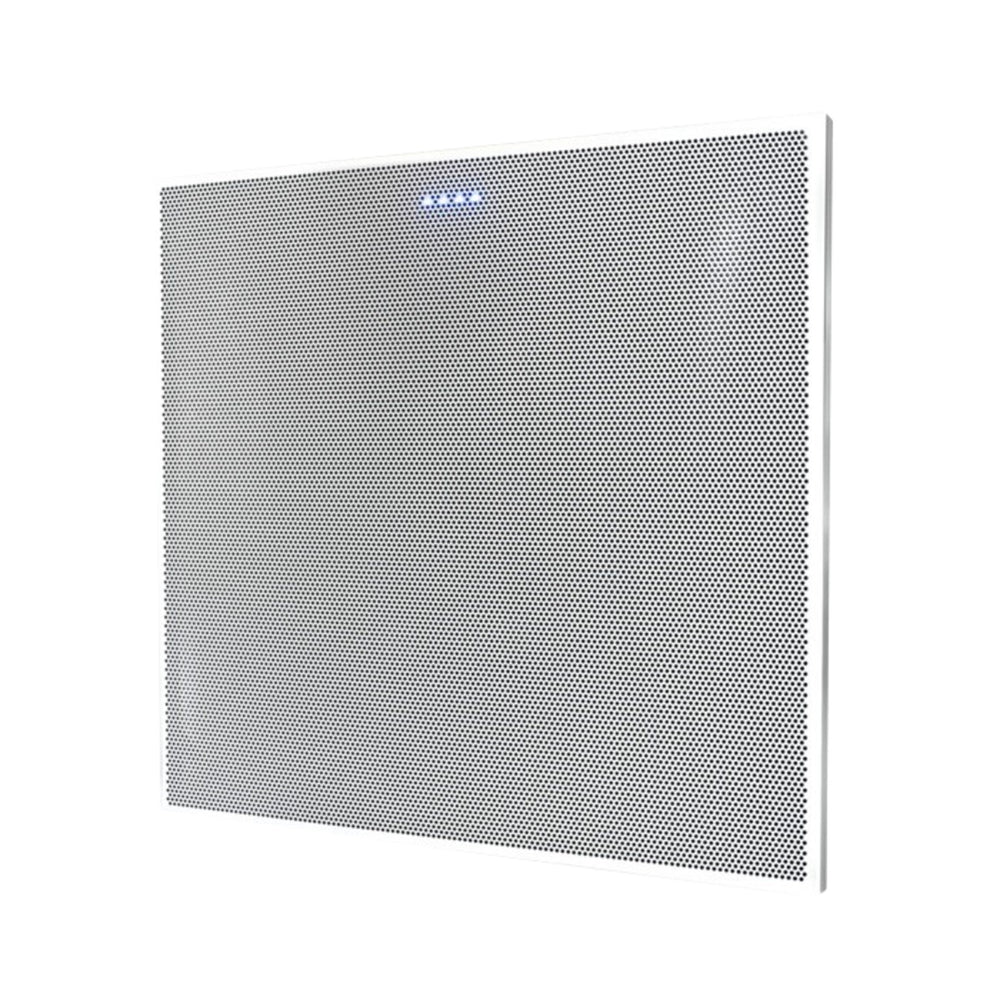

The Biamp BMA 360D is a white ceiling tile microphone array designed for unified communications. It features 12 configurable beam patterns and Dante/AES67 connectivity. Smart-Boards supplies this solution across the GCC and Africa.
This ceiling-mounted device captures natural, full-fidelity voice for conferencing environments. It utilises ultra-wideband beamforming to maintain consistent audio quality across all frequencies. The unit fits standard 24-inch ceiling tile grids, simplifying physical installation in existing infrastructure.
Integration with modern DSP systems is streamlined via native Dante and AES67 protocols. It supports PoE++ (IEEE 802.3bt) for power and data over a single RJ-45 connection. This allows for scalable, vendor-agnostic deployments suitable for multi-site educational and corporate rollouts.
Key features
- Configurable Coverage - Twelve beam patterns allow precise audio coverage for standard or custom room layouts.
- Dante Integration - Native Dante outputs provide individual beam data and smart-switched mixes for DSP flexibility.
- Ceiling Compatibility - Designed for 24-inch by 24-inch ceiling tile openings with VESA-ready mounting options.
- Smart Voice Selection - Dynamically selects the best voice combination with integrated audio enhancement for active talkers.
- Power Delivery - Operates on PoE++ 90 W or 30 W PoE+, requiring only a standard Cat 6 connection.
Ideal for: Unified communications, camera tracking, and voice lift applications in schools, ministries, and offices across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- BMA 360D
- Product type
- Ceiling Microphone Array
- Key features
- Ultra-wideband beamforming, 12 beam patterns, Dante outputs, smart-switched mix, 24-inch ceiling tile fit, camera tracking support, voice lift support
- Coverage pattern
- 12 configurable beam patterns
- PoE
- PoE++ 56 V 90 W (IEEE 802.3bt); 30 W PoE+ without speakers
- Protocols
- Dante, AES67
Display
- Colour
- White
Connectivity
- Connectivity options
- RJ-45 PoE++ (Cat 6)
Physical & warranty
- Mounting type
- Ceiling tile (24-inch grid), suspension, VESA-ready; surface and recess kits sold separately
- Operating temperature
- -10 to 40 °C
- Power consumption
- 23 W (typical, without speaker amp)
- Weight
- 5.0 kg
- VESA mount
- 100 mm hole pattern, M4 x 10 mm
- Shipping weight
- 6.4 kg
- Input voltage
- 100-240 V AC, 50/60 Hz
- Power source
- PoE injector or equivalent
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the BMA 360D require separate power supply?
No. It draws power via PoE++ (IEEE 802.3bt) over a single Cat 6 cable. This reduces cabling complexity for installers in GCC and African regions.
What mounting options are available?
It fits standard 24-inch ceiling tiles and supports suspension or VESA mounting. Surface and recess kits are sold separately for specific installation needs.
Is this microphone array suitable for large meeting rooms?
Yes. Its 12 configurable beam patterns and uniform gain response ensure balanced audio pickup regardless of participant position, even in larger spaces.
Which countries can Smart-Boards deliver this product to?
We ship to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations through established logistics partners.
Does Smart-Boards handle installation outside the UAE?
On-site installation is provided within the UAE only. For other countries, delivery is ready for local setup with remote guidance available if needed.
Can it work with non-Dante DSP systems?
Yes. The BMA 360D supports AES67 protocols alongside Dante, enabling interoperability with any compatible DSP for flexible, vendor-agnostic system design.
What is the typical power consumption?
The typical power consumption is 23 W without the speaker amplifier. It requires an input voltage of 100-240 V AC for the power source.
