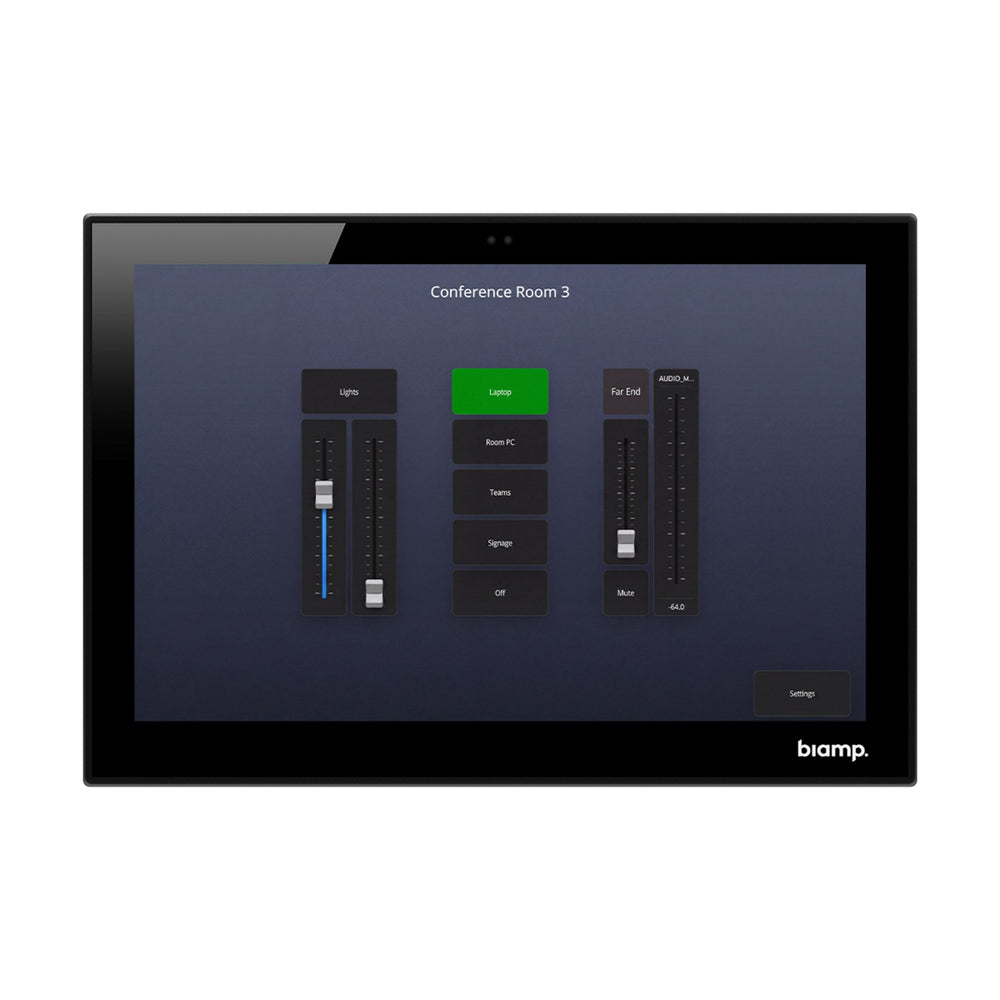

The Biamp Apprimo Touch 10 (model 910-01873) is a 10-inch room control panel designed for meeting room booking and AV management. Featuring a high-contrast capacitive LCD, PoE power, and proximity wake, it integrates with Impera controllers. Smart-Boards supplies this unit to organisations across the GCC and Africa.
This Biamp control panel utilises a 10-inch high-contrast capacitive touch LCD with a resolution of 1280 x 800 pixels and 350 nits brightness. The scratch-resistant glass surface ensures durability in high-traffic environments. Proximity sensing automatically activates the screen when users approach, while ambient light sensors adjust brightness for optimal visibility. The device operates within a temperature range of 0 to 40 °C and weighs 560 grams.
Installation is simplified through PoE (IEEE 802.3at Class 3, 15 W) power over a single CAT5e or higher Ethernet cable. It fits standard single-gang US, EU, and DK back boxes for global compatibility. The panel connects to Impera Alfa II, Lima, Tango, and Sierra II controllers via RJ-45. Firmware updates are performed locally using the integrated Mini USB 2.0 port. The unit includes a mounting bracket, screws, ejector pin, USB-OTG adapter, and polishing cloth.
Key features
- Capacitive Touch Interface - Features a 10-inch high-contrast capacitive touch LCD with 1280 x 800 resolution and 350 nits brightness for responsive control.
- PoE Power Supply - Draws 15 W via IEEE 802.3at Class 3 PoE, allowing single-cable installation over CAT5e or higher Ethernet connections.
- Impera Controller Integration - Compatible with Impera Alfa II, Lima, Tango, and Sierra II controllers for unified AV and room management.
- Smart Activation Sensors - Includes proximity wake technology and automatic brightness adjustment to maintain visibility in varying ambient light conditions.
- Flexible Mounting Options - Designed to fit standard single-gang US, EU, and DK back boxes for versatile installation across different regions.
- Local Firmware Updates - Allows direct firmware updates via the integrated Mini USB 2.0 port for easy maintenance and feature improvements.
Ideal for meeting room control, room booking, and AV management in schools, universities, ministries, NGOs, and companies across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- Apprimo Touch 10
- Product type
- Room Control Panel
- Key features
- PoE powered, 10-inch capacitive touch LCD, proximity wake, ambient light brightness, scratch-resistant glass, Workplace Control support, Project Designer UI templates, mini USB firmware updates
- Application
- Meeting room control and room booking
- Compatibility
- Impera Alfa II, Impera Lima, Impera Tango, Impera Sierra II controllers
- PoE
- PoE (IEEE 802.3at Class 3, 15 W)
Display
- Brightness
- 350 cd/m²
- Resolution
- 1280 × 800
- Screen size
- 10"
- Display type
- High-contrast capacitive touch LCD
Touch
- Touch technology
- PCAP
Connectivity
- Ethernet (RJ45)
- RJ-45, Cat 5e and above
- USB ports
- Mini USB 2.0 (firmware updates)
Physical & warranty
- Mounting type
- Fits single-gang US, EU and DK back boxes
- In the box
- Mounting bracket and screws, ejector pin, USB-OTG adapter, polishing cloth
- Operating temperature
- 0 to 40 °C
- Weight
- 560 g
- Warranty
- 5 years
- Certifications
- CE marked, RoHS compliant
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which countries can the Biamp Apprimo Touch 10 be delivered to?
Yes, Smart-Boards ships this product to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and select African nations. Delivery times vary by country and order size, confirmed on your quotation.
Is on-site installation available outside the UAE?
No, on-site installation is only provided within the UAE. For other countries, the unit is delivered ready for local setup, with remote guidance available if needed.
Does this panel support Workplace Control?
Yes, the Apprimo Touch 10 supports Workplace Control, providing a complete software-based solution for managing room bookings and AV systems.
What warranty is included?
The product comes with a 5-year manufacturer warranty, supported by Smart-Boards' after-sales service for clients in the GCC and Africa.
Can the interface be customised?
Yes, the Project Designer software allows customization of UI templates and design themes to match your corporate identity and specific operational needs.
What is included in the box?
The package contains the control panel, mounting bracket and screws, an ejector pin, a USB-OTG adapter, and a polishing cloth.
What certifications does the device have?
The Biamp Apprimo Touch 10 is CE marked and RoHS compliant, ensuring adherence to relevant European standards for safety and environmental protection.
