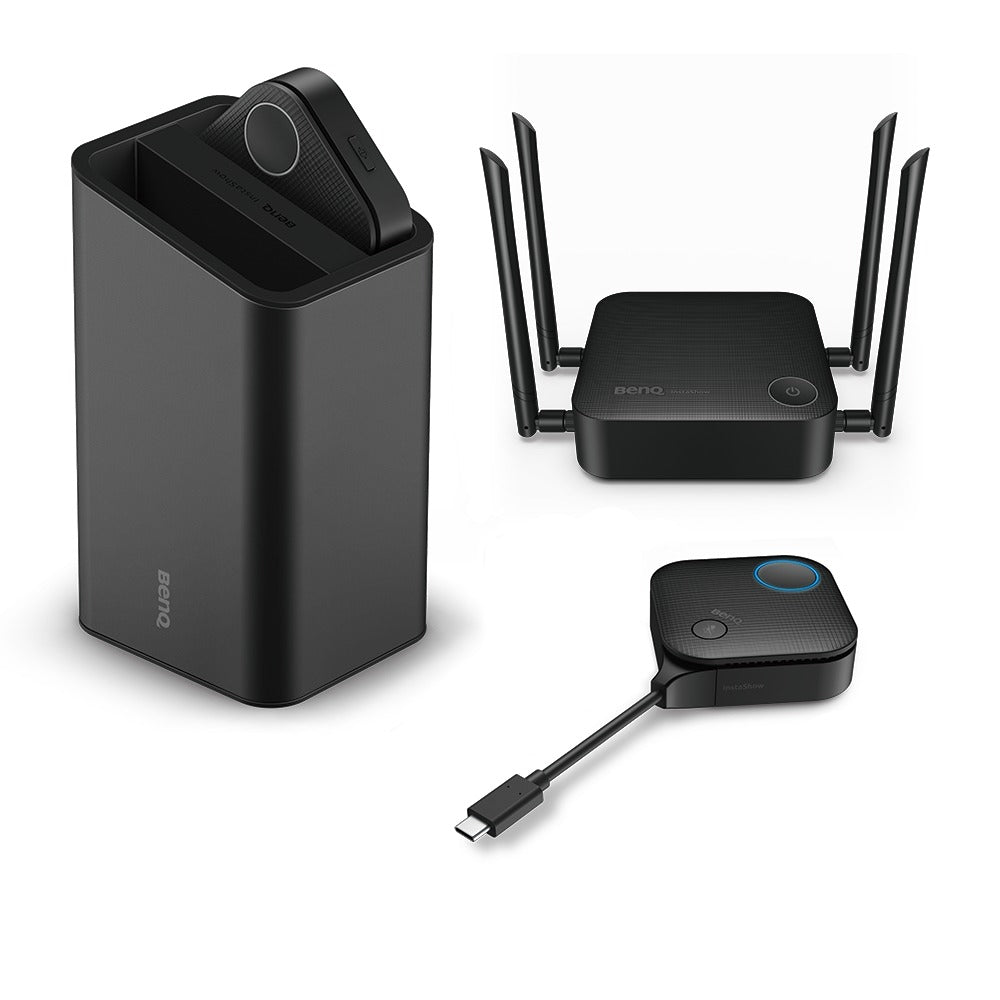

The BenQ InstaShow VS20 is a wireless presentation system designed for medium to large meeting rooms. It delivers 4K UHD resolution at 60 Hz over Wi-Fi 5 with AES128 encryption. Smart-Boards supplies this unit across the GCC and Africa.
This device enables secure, high-resolution collaboration without cables. The VS20 transmits 4K content at 60 Hz using Wi-Fi 5 (AC1200), ensuring stable performance in busy environments. Built-in button microphone integration supports clear audio during hybrid sessions. The router-level chipset provides enterprise-grade security via WPA2 and AES128 encryption, protecting sensitive data during presentations.
Smart-Boards serves as an authorised reseller, providing this hardware to schools, universities, ministries, NGOs, and companies throughout the GCC and Africa. We offer live or virtual demonstrations to verify suitability for your specific room size. Pricing is by quotation, with options for education, government, and bulk tenders. Delivery times depend on country and order size, confirmed in the quote.
Key features
- 4K 60Hz Output - Delivers crisp 3840 x 2160 resolution at 60 Hz for detailed visual content.
- Secure Wi-Fi 5 - Uses dual-band AC1200 connectivity with WPA2 and AES128 encryption for data protection.
- Compact Design - Measures 145 x 145 x 46 mm and weighs 348 g for easy placement in conference rooms.
- Microphone Integration - Connects directly with button microphones to enhance audio clarity during wireless presentations.
- 4-Split Screen - Allows simultaneous viewing of multiple sources for effective collaborative decision-making.
Ideal for medium to large meeting rooms, hybrid collaboration spaces, and multi-site rollouts for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- VS20
- Product type
- Wireless Presentation System
- Key features
- 4K 60 Hz output, 4-split screen, Wi-Fi 5 dual band, AES128 encryption, WPA2, button microphone integration
- Antenna
- 4 × 5 dBi MIMO
- Application
- Medium to large meeting rooms
- Data rate
- AC1200 (2.4 GHz 300 Mbps + 5 GHz 867 Mbps)
- Security features
- WPA2, AES128 encryption
Display
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
Connectivity
- HDMI output
- HDMI 2.0 (HDCP)
- Wi-Fi
- Wi-Fi 5
- Ports
- HDMI out × 1, LAN (RJ45) × 1
Physical & warranty
- In the box
- Host receiver, cradle, HDMI cable, power supply, 4 antennas
- Power consumption
- 11 W (normal)
- Dimensions
- 145 x 145 x 46 mm
- Weight
- 348 g
- Power source
- DC 12 V, 3 A
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What countries does Smart-Boards deliver to?
We ship to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and selected African nations through established logistics partners. Costs are minimised, and delivery time depends on the specific country and order size, which is confirmed in the quotation.
Is on-site installation available outside the UAE?
On-site installation is provided only within the UAE. For other countries, the unit is delivered ready for local setup. Remote guidance is available to assist local technicians with the configuration and antenna placement if needed.
Does the VS20 support 4K resolution?
Yes, the system outputs 3840 x 2160 (4K UHD) at 60 Hz, ensuring sharp image quality for detailed presentations and video conferencing.
How is data secured on this wireless system?
The VS20 uses a router-level chipset with WPA2 authentication and AES128 encryption to protect information during wireless transmission.
What is included in the box?
The package contains the host receiver, cradle, HDMI cable, power supply, and four 5 dBi MIMO antennas.
Can I book a demonstration before purchasing?
Yes, Smart-Boards offers live or virtual demonstrations to help you verify the system's suitability for your specific room size and requirements.
What is the pricing model?
Pricing is by quotation only. We offer special options for education, government, bulk orders, and tender requirements across the GCC and Africa.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
