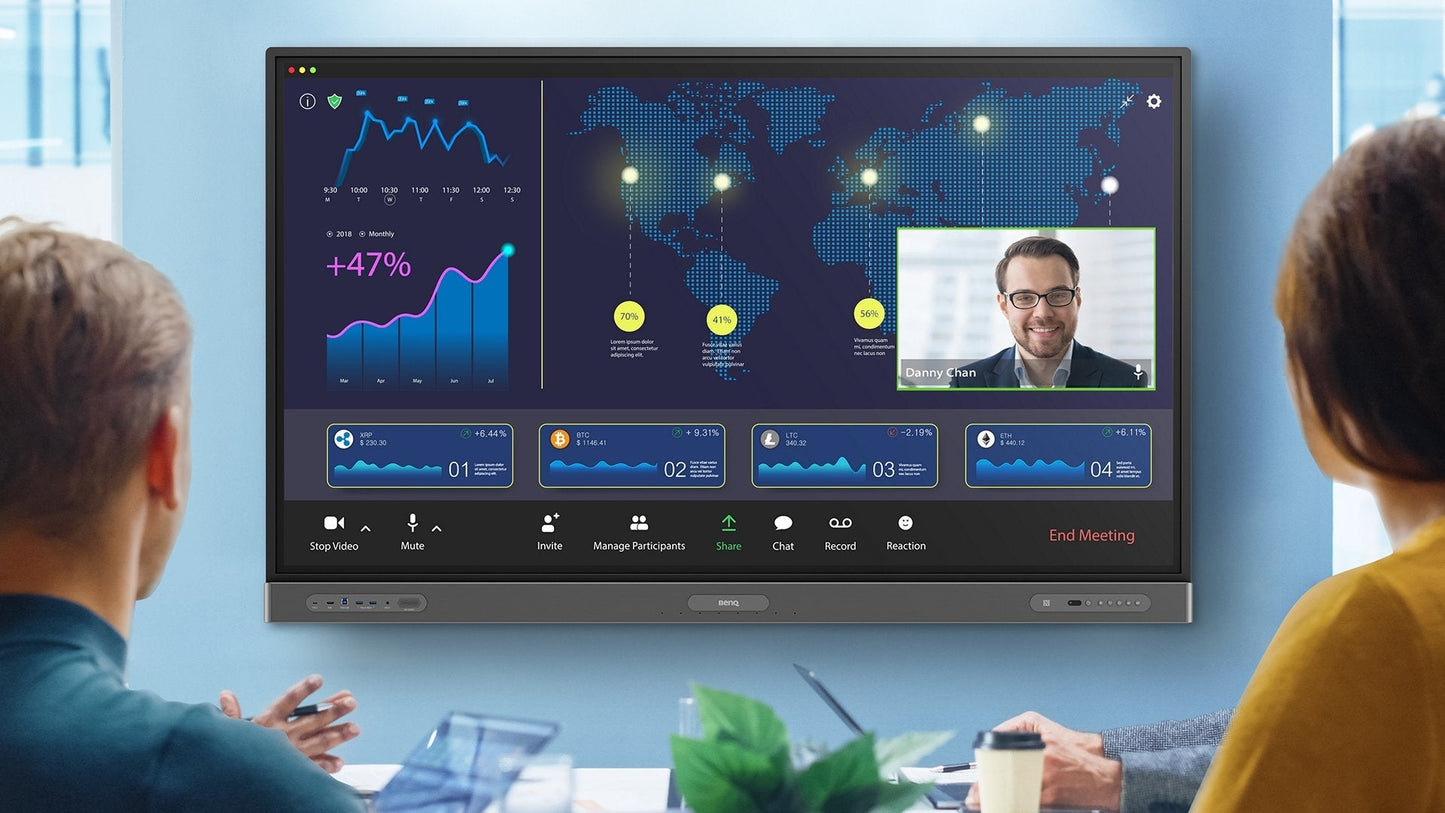

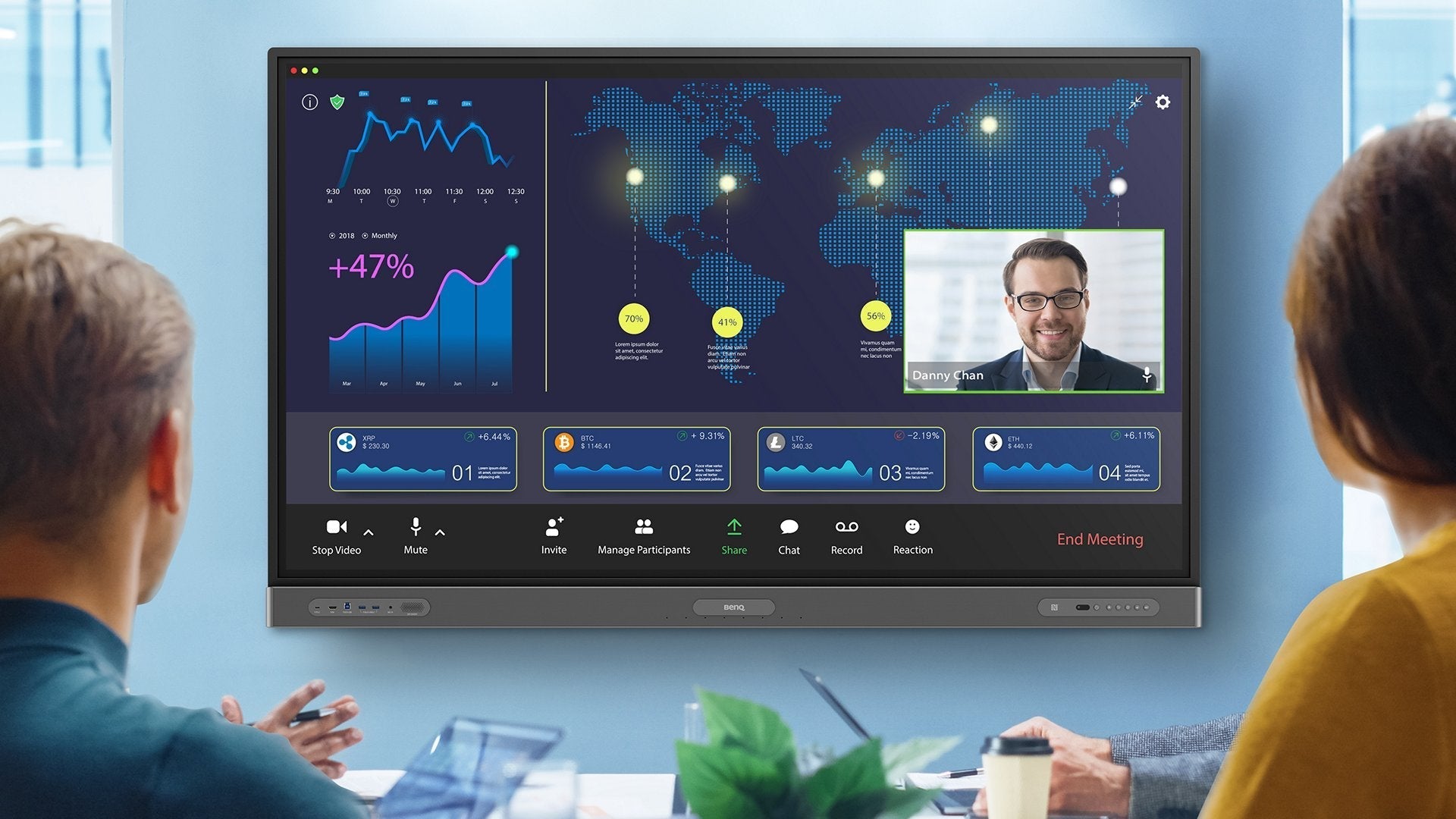

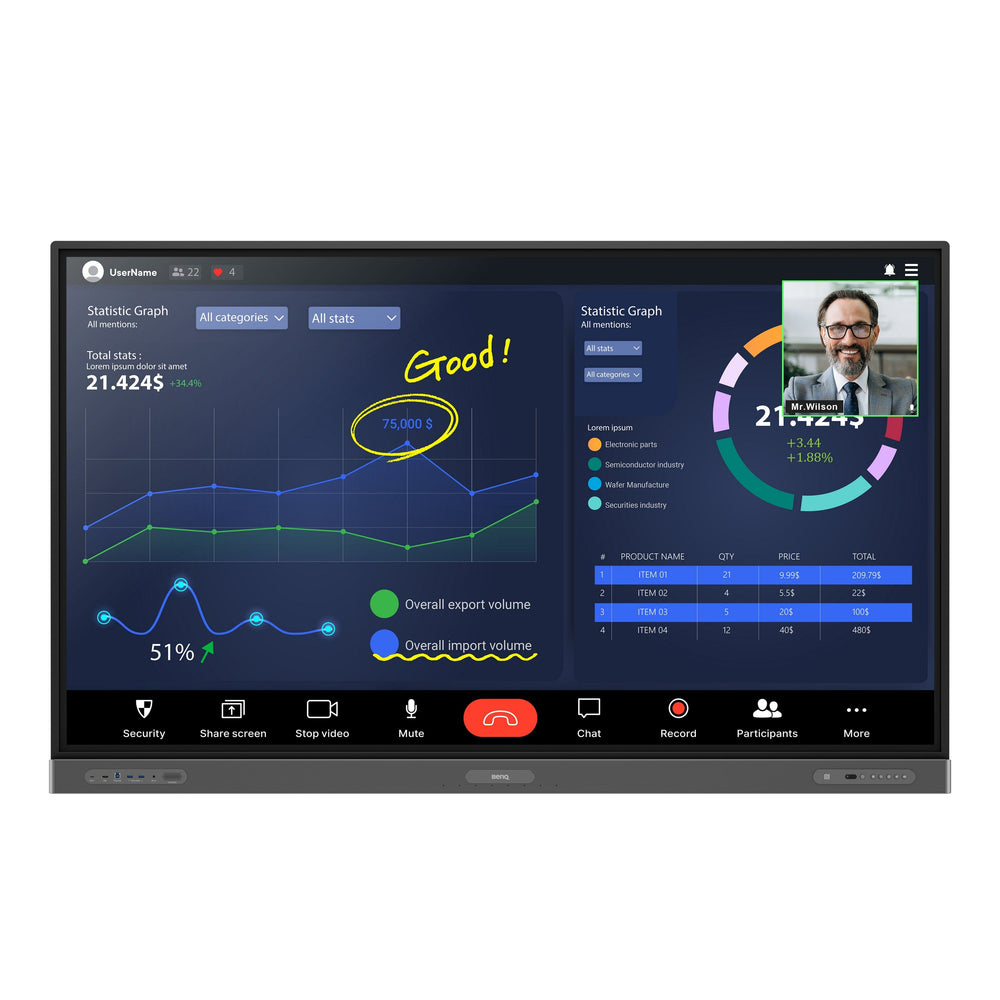

The BenQ Board Pro RP8603 is an 86-inch UHD interactive flat panel designed for professional collaboration. Featuring a 3840 × 2160 IPS screen and 40-point IR touch, it supports multi-site deployments across the GCC and Africa with integrated audio and air quality monitoring.
This 86-inch display delivers UHD clarity with an IPS panel offering 450 nits brightness and a 1200:1 contrast ratio. The surface uses nano-ionic silver germ-resistant technology and 9H tempered glass for durability. Built-in sensors include ambient light, motion, and TVOC air quality monitoring to maintain optimal environmental conditions during extended use.
Connectivity is extensive, featuring two USB-C ports with 65W PD, multiple USB 3.0 interfaces, VGA, and DisplayPort. The Android 11.0 OS supports EZWrite 6.0 for whiteboarding and InstaShare 2 for wireless sharing. An integrated 8-microphone array captures audio up to 8 meters, while dual 16W speakers and a subwoofer provide clear sound output.
Key features
- UHD Visuals - The 86-inch IPS panel provides 3840 × 2160 resolution with 10-bit color depth and 450 nits typical brightness.
- Precision Touch - High Precision IR technology supports up to 40 simultaneous touch points with a response time of less than 10 ms.
- Integrated Audio - An 8-microphone array with 8m range and dual 16W speakers plus a 16W subwoofer ensure clear audio for presentations.
- Health Sensors - Built-in ambient light, motion, and TVOC air quality sensors help optimize the workspace environment automatically.
- Connectivity - Includes two USB-C ports with 65W PD, VGA, DisplayPort, and an OPS slot for slot-in PC expansion.
- Software Suite - Runs Android 11.0 with EZWrite 6.0 whiteboarding, InstaShare 2 wireless sharing, and DMS device management.
- Durability - The screen features 9H tempered glass and nano-ionic silver germ-resistant technology for long-term hygiene.
- Power Efficiency - Operates on AC 100-240V with typical power consumption of 141.9 W and standby power under 0.5 W.
Ideal for conference rooms, lecture halls, and corporate training centers requiring high-capacity collaboration tools, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Orientation
- Landscape
Display
- Backlight
- D-LED
- Blue light filter
- Yes
- Brightness
- 450 cd/m²
- Colour depth
- 10bit
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Surface protection
- 9H tempered
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- 72% NTSC
- Contrast ratio
- 1200:1
- Panel technology
- IPS
- Response time
- 8 ms
Touch
- Touch points
- up to 40
- Touch response time
- < 10 ms
- Touch technology
- High Precision IR
System
- Processor
- A73 × 4 + A53 × 4
- Graphics
- G52 MP8
- OPS slot
- Optional
- Operating system
- Android 11
- RAM
- 8 GB
- Sensors
- CO2, PM2.5, PM10, Temperature, Humidity, Air ioniser
- Storage
- 64 GB
- Operating hours
- 18 hours / 7 days
- Storage conditions
- -10°C ~ 60°C | 14°F ~ 140°F
Connectivity
- DisplayPort
- DP 1.2a × 1
- Ethernet (RJ45)
- 10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
- HDMI input
- HDMI 2.0 × 3
- HDMI output
- HDMI 2.0 × 1
- NFC card reader
- Yes
- Serial port
- RS232 × 1
- Touch USB ports
- USB Type B × 3
- USB-C
- 1 × 3.0 + 1 × 3.0 (PD 65 W)
- USB ports
- 2 × 2.0 + 5 × 3.0
- VGA input
- VGA × 1
- Wake-on-LAN
- Yes
- Wi-Fi
- Built-in
Camera & audio
- Audio in
- Audio (3.5 mm) × 1
- Audio out
- Audio (3.5 mm) × 1
- Speaker output
- 2 × 16 W / 1 × Subwoofer 16 W
- Speaker type
- Built-in Speakers
- Microphone
- 8-microphone array (range: up to 8 m | 26ft)
Physical & warranty
- In the box
- 1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
- Operating humidity
- 20% ~ 80% RH
- Operating temperature
- 0°C ~ 40°C | 32°F ~ 104°F
- Power consumption
- 141.9 W
- Standby power
- <0.5 W
- Dimensions
- 1962.4 × 1203.4 × 121.5 mm (77.3 × 47.4 × 4.8 inch)
- Weight
- 55.5 kg
- Shipping dimensions
- 2160 × 1340 × 250 mm (85.0 × 52.8 × 9.8 inch)
- VESA mount
- VESA 800 × 600 mm (4 × M8 × 25L)
- Input voltage
- AC 100-240V 50/60Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the BenQ RP8603 have wireless screen sharing?
Yes, the RP8603 supports wireless screen sharing via the built-in InstaShare 2 application, allowing users to project content from compatible devices without cables.
What is the touch technology used in this panel?
The panel uses High Precision IR touch technology, supporting up to 40 simultaneous touch points with a response time of less than 10 ms for accurate interaction.
Which countries can this product be delivered to?
Smart-Boards ships to all GCC countries and African nations through established logistics partners, ensuring cost-effective delivery to the region.
Is on-site installation available outside the UAE?
No, on-site installation is only performed within the UAE. For other countries, the unit is delivered ready for local setup, with remote guidance available if needed.
What is the warranty coverage for this product?
The product comes with the manufacturer warranty plus Smart-Boards after-sales support, ensuring assistance for any technical issues or maintenance needs.
Can I use a slot-in PC with this display?
Yes, the RP8603 includes an OPS slot for installing a slot-in PC, allowing you to expand the display's functionality with additional computing power.
Does the panel monitor air quality?
Yes, the RP8603 includes a built-in TVOC air quality sensor to monitor environmental conditions and help maintain a healthy workspace for users.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
Ready to equip your space?
Get a tailored quote for the GCC & Africa — pricing, availability and project support in one reply.
