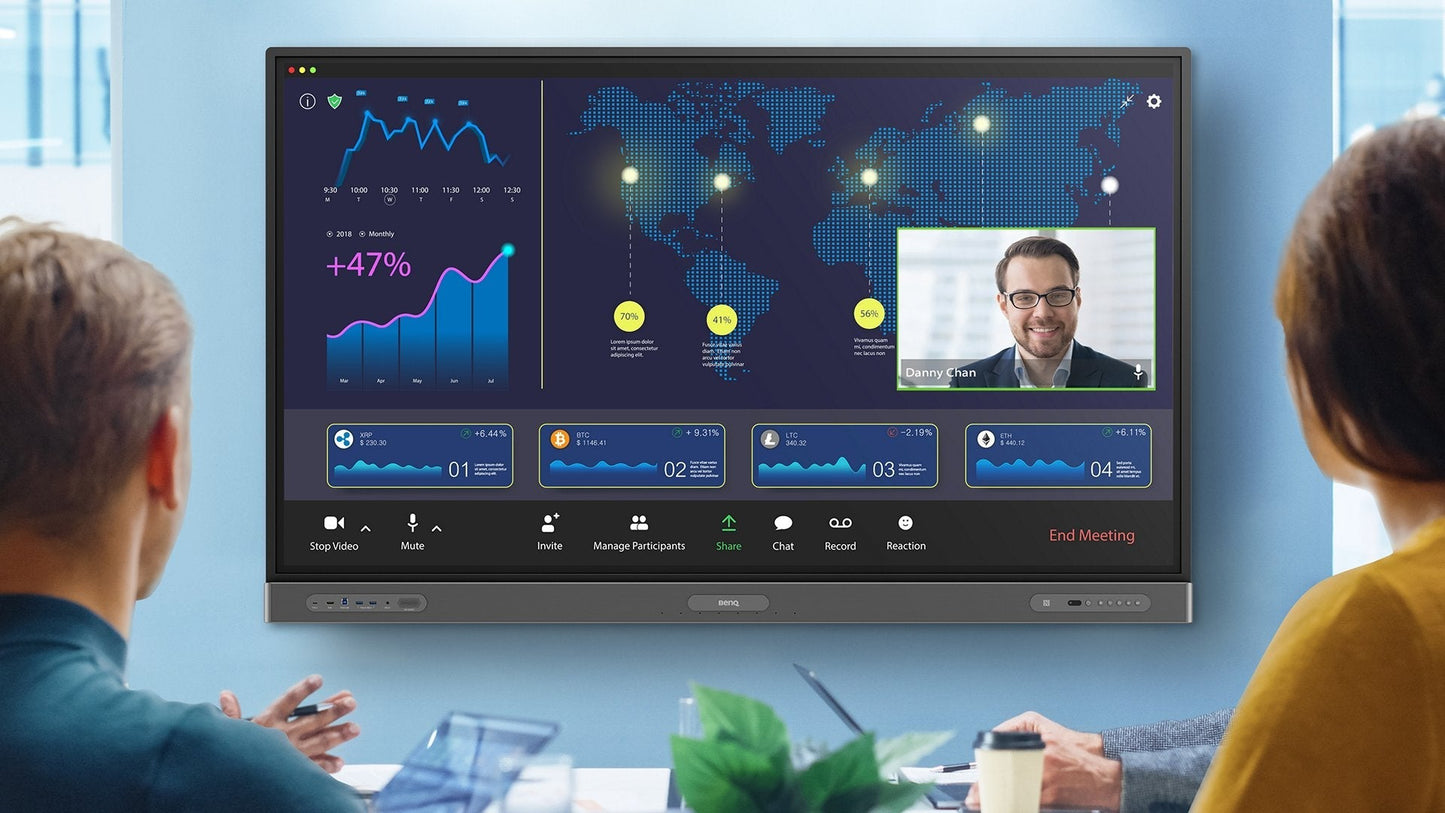

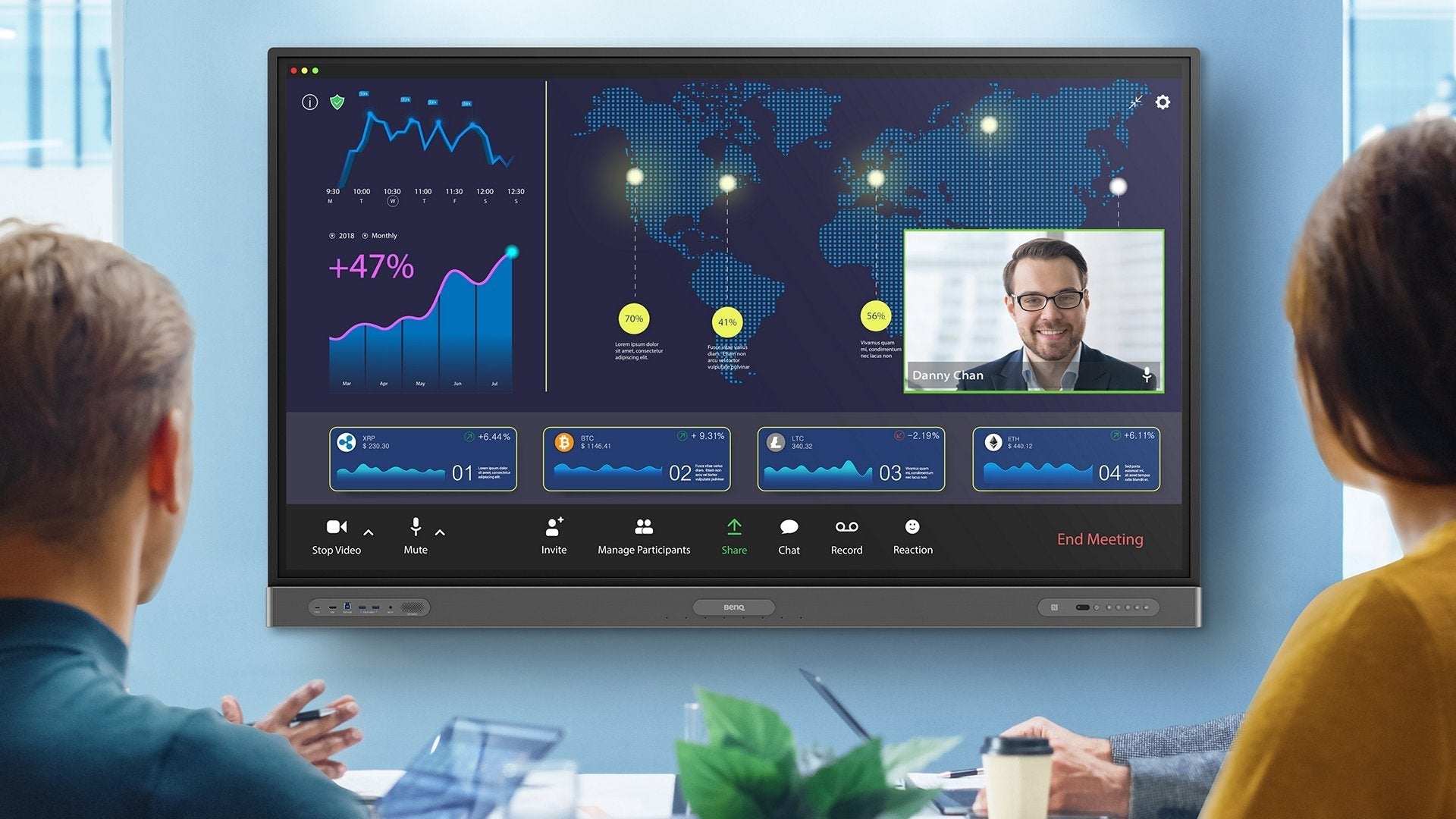

The BenQ Board Pro RP6503 is a 65-inch UHD interactive flat panel designed for collaborative workspaces across the GCC and Africa. Featuring a 3840 × 2160 IPS display and 40-point touch capability, it supports efficient team workflows. Smart-Boards supplies this model with manufacturer warranty and regional logistics support.
This 65-inch display integrates an Android 11.0 operating system with a robust CPU and GPU configuration to handle demanding presentation tasks. The screen delivers UHD 3840 × 2160 resolution with 10-bit color depth, ensuring accurate visuals for detailed work. Built-in connectivity includes dual Ethernet ports, Wi-Fi, and multiple USB standards, allowing devices to link directly without external adapters. The panel supports 18-hour continuous operation, making it suitable for busy office environments.
Collaboration features include InstaShare 2 for wireless screen sharing and EZWrite 6.0 for digital whiteboarding on the tempered surface. An 8-microphone array captures audio from up to 8 meters away, while dual 16 W speakers and a 16 W subwoofer provide clear sound. Health-focused sensors monitor air quality and motion, and the device includes germ-resistant coating. Smart-Boards provides quote-only pricing with installation services within the UAE and delivery-ready units for other regions.
Key features
- UHD Visuals - The 65-inch IPS panel offers 3840 × 2160 pixel resolution with 400 nits brightness and 10-bit color depth for clear, detailed images.
- 40-Point Touch - High Precision IR touch technology supports up to 40 simultaneous touch points with a response time of less than 10 ms for fast interaction.
- Integrated Audio - An 8-microphone array with 8-meter range captures voice, while 2 × 16 W speakers and a 16 W subwoofer deliver audio for meetings.
- Wireless Sharing - InstaShare 2 enables wireless screen sharing from connected devices, and EZWrite 6.0 provides tools for digital annotation and whiteboarding.
- Connectivity - Ports include HDMI 1.2a, VGA, dual Ethernet, multiple USB-A/USB-B/USB-C ports, and an OPS slot for slot-in PC expansion.
- Air Quality Sensors - Built-in ambient light, motion, and TVOC air sensors monitor the environment, while an air ionizer helps maintain cleaner indoor air.
Ideal for corporate offices, training centers, and conference rooms requiring reliable 4K collaboration displays, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Orientation
- Landscape
Display
- Backlight
- D-LED
- Blue light filter
- Yes
- Brightness
- 400 cd/m²
- Colour depth
- 10bit
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 65"
- Surface protection
- 9H tempered
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- 72% NTSC
- Contrast ratio
- 1200:1
- Panel technology
- IPS
- Response time
- 8 ms
Touch
- Touch points
- up to 40
- Touch response time
- < 10 ms
- Touch technology
- High Precision IR
System
- Processor
- A73 × 4 + A53 × 4
- Graphics
- G52 MP8
- OPS slot
- Optional
- Operating system
- Android 11
- RAM
- 8 GB
- Sensors
- CO2, PM2.5, PM10, Temperature, Humidity, Air ioniser
- Storage
- 64 GB
- Operating hours
- 18 hours / 7 days
- Storage conditions
- -10°C ~ 60°C | 14°F ~ 140°F
Connectivity
- DisplayPort
- DP 1.2a × 1
- Ethernet (RJ45)
- 10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
- HDMI input
- HDMI 2.0 × 3
- HDMI output
- HDMI 2.0 × 1
- NFC card reader
- Yes
- Serial port
- RS232 × 1
- Touch USB ports
- USB Type B × 3
- USB-C
- 1 × 3.0 + 1 × 3.0 (PD 65 W)
- USB ports
- 2 × 2.0 + 5 × 3.0
- VGA input
- VGA × 1
- Wi-Fi
- Built-in
Camera & audio
- Audio in
- Audio (3.5 mm) × 1
- Audio out
- Audio (3.5 mm) × 1
- Speaker output
- 2 × 16 W / 1 × Subwoofer 16 W
- Speaker type
- Built-in Speakers
- Microphone
- 8-microphone array (range: up to 8 m | 26ft)
Physical & warranty
- In the box
- 1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
- Operating humidity
- 20% ~ 80% RH
- Operating temperature
- 0°C ~ 40°C | 32°F ~ 104°F
- Power consumption
- 80.4 W
- Standby power
- <0.5 W
- Dimensions
- 1489.3 × 934.3 × 121.5 mm (58.6 × 36.8 × 4.8 inch)
- Weight
- 43 kg
- Shipping dimensions
- 1660 × 1045 × 220 mm (65.4 × 41.1 × 8.7 inch)
- VESA mount
- VESA 600 × 400 mm (4 × M8 × 25L)
- Input voltage
- AC 100-240V 50/60Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the screen resolution of the BenQ RP6503?
It features a UHD 3840 × 2160 pixel resolution on a 65-inch IPS panel, providing sharp visuals for presentations and detailed work.
Can this panel be installed outside the UAE?
Smart-Boards provides on-site installation within the UAE only. For other countries, units are delivered ready for local setup, with remote guidance available if needed.
Which countries can receive delivery?
We ship to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations through established logistics partners.
Does it support wireless screen sharing?
Yes, the device includes InstaShare 2 software for wireless screen sharing from compatible devices, facilitating easy content display during meetings.
What touch technology does it use?
It uses High Precision IR touch technology that supports up to 40 simultaneous touch points with a response time of less than 10 ms.
Is there an OPS slot for a PC?
Yes, the unit includes one OPS slot for installing a slot-in PC, allowing the display to function as a standalone computer system.
What is the typical power consumption?
The typical power consumption is 80.4 W, with standby power usage below 0.5 W, supporting energy-efficient operation in office environments.
