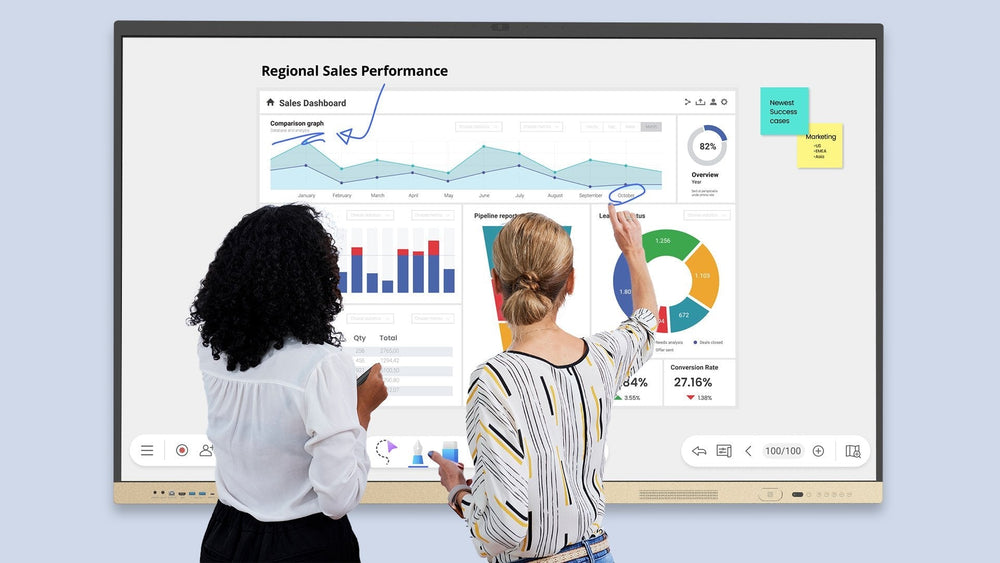

The BenQ Board Essential RE8604FV is an 86-inch UHD 3840 × 2160 interactive flat panel designed for collaborative workspaces. It features 40-point IR touch and built-in Android 14.0. Smart-Boards supplies this unit across the GCC and Africa with local logistics and support.
The BenQ Board Essential RE8604FV integrates presentation and collaboration tools into a single 86-inch display. Its IPS panel delivers UHD 3840 × 2160 resolution with 450 nits brightness for clear visibility in varied lighting. The unit supports up to 40 simultaneous touch points with response times under 5 ms, ensuring precise interaction for multiple users during meetings or lessons.
Operating on Android 14.0 with EDLA certification, the RE8604FV includes a G52 MP8 GPU for smooth performance. Connectivity options include USB-C with 65 W power delivery, HDMI, VGA, and an OPS slot for slot-in PCs. The built-in 8-microphone array captures audio up to 8 m, while dual 20 W speakers provide output. Smart-Boards, as an authorised reseller, manages delivery and setup guidance for buyers in the GCC and Africa.
Key features
- UHD Display - The 86-inch IPS panel provides UHD 3840 × 2160 resolution with 450 nits typical brightness and 1200:1 contrast ratio.
- 40-Point Touch - Precision IR technology supports up to 40 touch points with a response time of less than 5 ms for fluid writing and drawing.
- Android 14.0 - Built-in Android 14.0 (EDLA) includes EZWrite 6.0 whiteboarding and InstaShare 2 for wireless screen sharing without external hardware.
- Audio Capture - An integrated 8-microphone array captures sound up to 8 m (26 ft), paired with dual 20 W speakers for clear audio feedback.
- Connectivity - Ports include USB-C (65 W PD), HDMI, VGA, OPS slot, and RS-232 for integration with existing room control systems.
Ideal for boardrooms, lecture halls, and training centres requiring high-touch collaboration, suitable for buyers across the GCC and Africa managing multi-site deployments.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- Power Code, Touch USB Cable, HDMI Cable, VGA (D-sub 15pin) Cable, Type-C Cable
- SD card slot
- SD Card Slot × 1
- Key features
- Palm rejection, Wake on LAN, NFC card reader, Sensors: Ambient light, IR receiver, NFC
- Orientation
- Landscape
Display
- Backlight
- D-LED
- Blue light filter
- Yes
- Brightness
- 450 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Surface protection
- Anti-Glare Smooth Glass
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 1,200:1
- Panel technology
- IPS
- Response time
- 8 ms
Touch
- Palm rejection
- Yes
- Touch accuracy
- ±1 mm
- Touch points
- 40 Points Multi Touch
- Touch resolution
- 32767 x 32767
- Touch response time
- < 5 ms
- Touch technology
- Infrared
System
- Ambient light sensor
- Yes
- Processor
- ARM 4x Cortex-A73 + 4x Cortex-A53
- Graphics
- Mali-G52 MP8
- OPS slot
- Optional
- Operating system
- Android 14
- RAM
- 8 GB
- Sensors
- Light Sensor, IR receiver, NFC Sensor
- Storage
- 32GB / 64GB
Connectivity
- Bluetooth
- Bluetooth 5.2
- DisplayPort
- Display port 1.2a × 1
- Ethernet (RJ45)
- RJ45 (1000 Mbps Port) × 2
- HDMI input
- HDMI In (HDMI 2.0) × 2
- HDMI output
- HDMI Out × 1
- NFC card reader
- Yes
- Serial port
- RS232 × 1
- Touch USB ports
- Touch USB 2.0 × 2
- USB-C
- USB-C (video, audio, touch, data, 65 W charging)
- USB ports
- USB 3.0 × 2, USB 2.0 × 2
- VGA input
- VGA × 1
- Wi-Fi
- Wi-Fi 6 (802.11ax)
Camera & audio
- Audio in
- Audio In × 1
- Audio out
- Audio Out × 1
- Built-in camera
- Yes
- Camera
- 4K UHD, 13 MP, Auto focus, privacy cover
- Speaker output
- 40 W (20 W × 2)
- Speaker type
- Built-in Speakers
- Microphone
- 8-mic array, 8 m pickup range
- Pickup range
- 8 m
Physical & warranty
- In the box
- Power Code, Touch USB Cable, HDMI Cable, VGA (D-sub 15pin) Cable, Type-C Cable, Remote Control, Stylus × 2, Quick Start Guide, Regulation Sheet, Wall Mount
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 106.8 W
- Standby power
- ≤ 0.5 W
- Dimensions
- 1961.8 x 1183.4 x 87.7 mm
- Weight
- 63.7 kg
- Shipping dimensions
- 2095 × 1265 × 185 mm
- VESA mount
- 800 x 600 mm
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the BenQ Board RE8604FV available for delivery in African countries?
Yes, Smart-Boards ships the RE8604FV to African countries through established logistics partners. Delivery times depend on the specific country and order size, which are confirmed on the quotation.
Does Smart-Boards provide on-site installation outside the UAE?
No, on-site installation is available within the UAE only. For other countries, the unit is delivered ready for local setup, with remote guidance provided if needed.
What is the power consumption of the RE8604FV?
The typical power consumption is 106.8 W. Standby power consumption is less than 0.5 W. It supports AC 100-240V 50/60Hz power input.
Can the RE8604FV be mounted on a wall?
Yes, the display supports VESA mounting with 800 × 600 mm screw pattern (4 × M8 × 25L). Smart-Boards supplies the unit for integration with standard AV mounting solutions.
Does the RE8604FV include a whiteboard software?
Yes, the device includes EZWrite 6.0 for digital whiteboarding. It also supports InstaShare 2 for wireless screen sharing from connected devices.
What is the warranty coverage for the RE8604FV?
The product comes with the manufacturer warranty plus Smart-Boards after-sales support. Warranty terms are confirmed during the quotation process based on the region.
Is quotation-only pricing applied to the RE8604FV?
Yes, pricing is by quotation only. Smart-Boards offers education, government, bulk, and tender options for buyers in the GCC and Africa.
