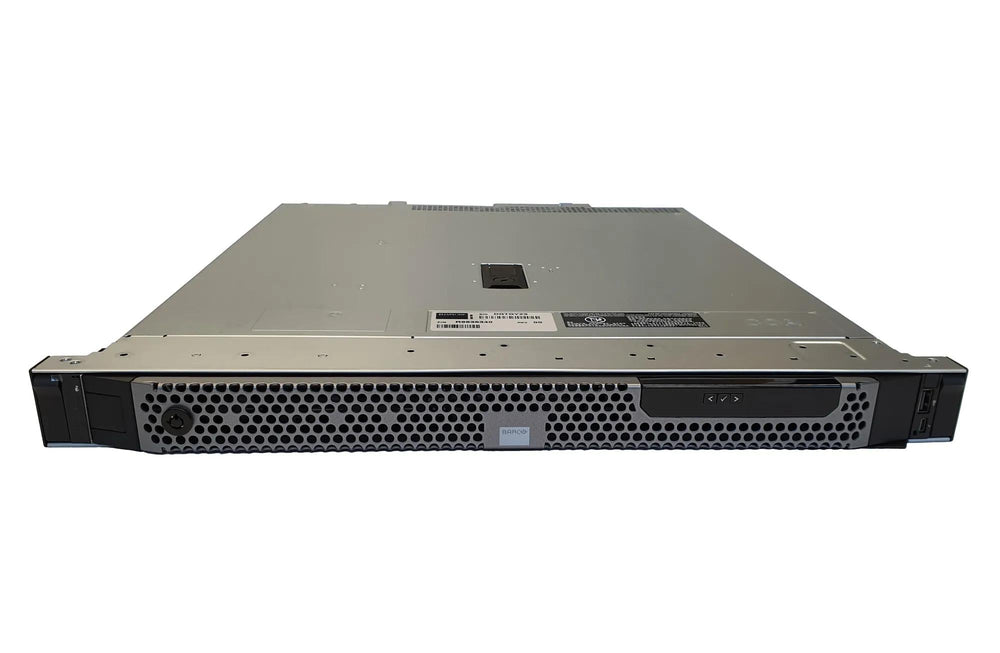

The Barco Enterprise-class Server R360 is a 1U rackmount video wall controller designed for networked visualization environments. It features an Intel Xeon E-2434 processor, 16 GB RAM, and hot-plug RAID-1 SSDs. Smart-Boards supplies this unit across the GCC and Africa with installation support in the UAE.
Designed for robust networked visualization, the Barco Enterprise-class Server R360 operates as a fully qualified platform for the TransForm N Management Server. It utilizes a Quad-Core Intel Xeon E-2434 processor to handle multiple tasks efficiently within complex AV setups. The system includes two 1Gb/s LAN ports for reliable connectivity and supports IPMI 2.0 and SNMP management for remote monitoring. Its 1U 19-inch rackmount form factor ensures it fits standard data center or rack infrastructure without occupying excessive space.
Reliability is central to the R360’s design, featuring two 600 W hot-plug redundant power supplies to maintain operation during component failure. Storage is provided by two 480 GB SSDs configured in RAID-1 for data integrity and fast access. The unit measures 482 x 42.8 x 598.9 mm and weighs 13.23 kg maximum, requiring an operating temperature between 10 to 35 °C and up to 80% RH non-condensing humidity. This server serves as the successor to the R350, offering enhanced media integration capabilities for scalable deployments.
Key features
- Processing Power - Intel Xeon E-2434 Quad-Core processor manages visualization tasks with 16 GB of system RAM.
- Storage Configuration - Two 480 GB hot-plug SSDs provide RAID-1 redundancy for secure data storage.
- Network Connectivity - Dual 1Gb/s LAN ports enable stable communication within the networked environment.
- Power Redundancy - Two 600 W hot-plug power supplies ensure continuous operation in critical AV installations.
- Management Support - Full compatibility with TransForm N Management Server via IPMI 2.0 and SNMP protocols.
Ideal for: Schools, universities, and ministries requiring reliable video wall control across GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- Enterprise-class Server R360
- Product type
- Enterprise-class Server
- Key features
- 1U 19-inch rackmount, Intel Xeon E-2434, Hot-plug RAID-1 SSDs, Redundant power supplies, IPMI 2.0 and SNMP management, TransForm N Management Server support, Maximum 40 dB(A) noise
- Compatibility
- TransForm N Management Server
System
- Processor
- Intel Xeon E-2434
- RAM
- 16 GB
- Storage
- 480 GB
Connectivity
- Ethernet (RJ45)
- 2 × 1Gb/s LAN
- Ports
- LAN 1Gb/s × 2
Physical & warranty
- Mounting type
- 19-inch rackmount, 1U
- Operating humidity
- Up to 80% RH, non-condensing
- Operating temperature
- 10 to 35 °C
- Power consumption
- 2 × 600 W hot-plug redundant
- Dimensions
- 482 x 42.8 x 598.9 mm (W x H x D)
- Weight
- 13.23 kg (maximum)
- Power source
- 100–240 V AC, 4.8–2.4 A, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this server compatible with TransForm N?
Yes, the Barco R360 is fully compatible with the TransForm N Management Server, allowing for centralized control and monitoring of your video wall infrastructure across multiple sites.
What is the rack size for the R360?
The unit is designed for a standard 19-inch rackmount installation. It occupies 1U of space, with dimensions of 482 x 42.8 x 598.9 mm, making it suitable for standard server racks.
Does it support redundant power?
Yes, the Enterprise-class Server R360 includes two 600 W hot-plug redundant power supplies. This ensures that if one power source fails, the system continues to operate without interruption.
Which countries can receive this product?
We deliver to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as select African nations. Logistics partners handle shipping to ensure the equipment arrives securely at your location.
Is installation included outside the UAE?
On-site installation is provided only within the UAE. For deliveries to other GCC or African countries, the unit is shipped ready for local setup with remote guidance if needed.
What are the power requirements?
The server operates on 100–240 V AC at 4.8–2.4 A, 50/60 Hz. Each of the two redundant power supplies is rated at 600 W, ensuring stable performance in varying regional power conditions.
Can I get a demo before buying?
Yes, Smart-Boards offers live or virtual demonstrations before purchase. This allows your technical team to verify compatibility and features for your specific video wall project in the GCC or Africa.
