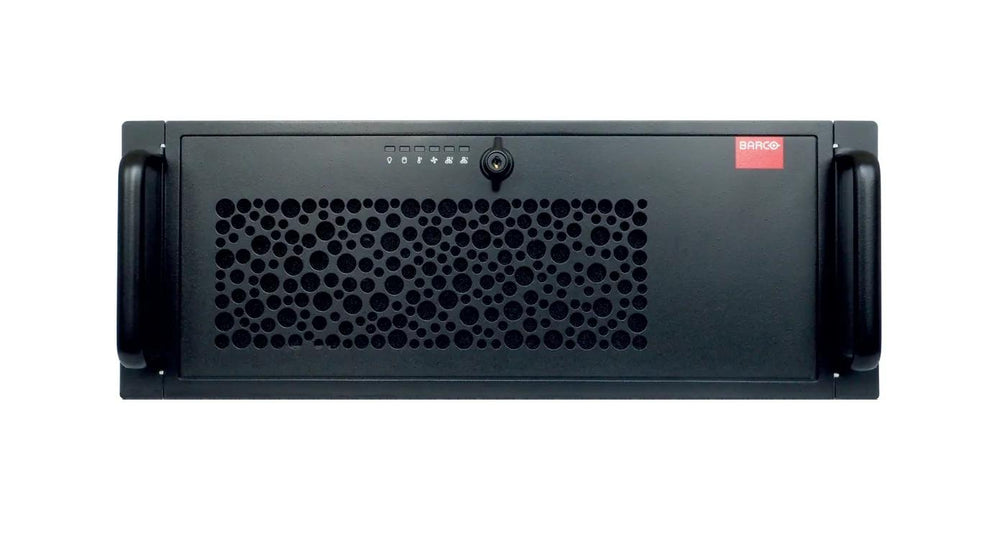

The Barco LVC 420 is a standalone video wall controller for monitoring baseband and networked sources. Featuring an Intel Xeon octa-core processor and support for up to 64 HD displays, it suits control rooms across the GCC and Africa. Smart-Boards supplies this unit from Dubai with regional logistics support.
This unit captures local and networked video sources for high-resolution video walls. It runs Windows 10 IoT Enterprise with an Intel Xeon octa-core processor at 2.1 GHz, scaling up to 3.0 GHz turbo. The system supports 32 GB or 64 GB RAM and dual 1,000 GB HDDs in RAID-1 configuration for reliable data integrity. Dual 1 Gb/s LAN ports ensure stable connectivity for visualization tasks.
Input flexibility includes DVI-I, DisplayPort 1.2, analog video, and HDMI signals. Outputs drive up to 64 HD displays using Barco loop-through technology. The 4U 19-inch rack-mount design houses redundant power supplies accepting 100–240 V input. Certified with UL, CB, CE, and FCC standards, it operates within 0–35 °C temperatures. Smart-Boards offers live demonstrations and remote guidance for setup across the GCC and Africa.
Key features
- Processing Power - Intel Xeon octa-core 2.1 GHz processor with 32 GB or 64 GB RAM and dual 1,000 GB HDDs in RAID-1.
- Display Capacity - Supports up to 64 HD displays with Barco loop-through for complex video wall configurations.
- Input Connectivity - Accepts multiple source types including DVI-I, DisplayPort 1.2, analog video, and HDMI signals.
- System Stability - Runs Windows 10 IoT Enterprise with redundant power supplies for continuous operation.
- Form Factor - Compact 4U 19-inch rack-mount design fits standard equipment closets.
Ideal for: Control rooms, monitoring centers, and visualization systems requiring reliable source capture and multi-display output for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- LVC 420
- Product type
- Video Wall Controller
- Key features
- Standalone video wall controller, networked and local sources, Windows applications, Barco CMS, TransForm N integration, redundant power
- Form factor
- 4U 19-inch rack mount
System
- Processor
- Intel Xeon octa-core 2.1 GHz (3.0 GHz max. turbo)
- Operating system
- Windows 10
- RAM
- 32 GB / 64 GB
- Storage
- 1000 GB
Connectivity
- Ethernet (RJ45)
- 2 x 1 Gb/s LAN
- Inputs
- Up to 5 x 4-channel DVI-I, 5 x 2-channel DisplayPort 1.2 (4096 x 2160 @ 60 Hz), 5 x 8-channel analog video, 4 x 4-channel HDMI, 4 x 1-channel HDMI (4K)
- Outputs
- Up to 64 HD displays with Barco loop-through
Physical & warranty
- Operating humidity
- Max. 80% RH (non-condensing) at 40 °C
- Operating temperature
- 0 to 35 °C
- Input voltage
- 100–240 V, 50/60 Hz, 800 W redundant power supply
- Certifications
- UL, CB, BIS, FCC, CE, IEC 60950, IEC 62368
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the maximum number of displays the LVC 420 can drive?
Yes, it supports up to 64 HD displays using Barco loop-through technology. This allows large-scale video wall deployments in command centers and operations rooms across the GCC and Africa.
Which countries can receive this product?
Smart-Boards ships to GCC countries and African nations through established logistics partners. While the manufacturer notes India availability, our regional supply covers the Middle East and Africa from our Dubai office.
Is on-site installation included outside the UAE?
No, on-site installation is available within the UAE only. For other countries, delivery is ready for local setup with remote guidance provided by our technical team to ensure correct configuration.
What input sources are supported?
It accepts up to five 4-channel DVI-I, five 2-channel DisplayPort 1.2, five 8-channel analog video, and multiple HDMI inputs. This variety supports both baseband and networked video sources.
Does it support networked visualization systems?
Yes, it integrates with Barco CMS and TransForm N. It runs Windows applications locally while controlling video walls as part of a networked visualization system for centralized management.
What power requirements does the unit have?
The unit requires 100–240 V, 50/60 Hz input with 800 W redundant power supplies. This dual supply setup ensures continuous operation in critical monitoring environments across different regional power standards.
Are there specific environmental operating limits?
Yes, it operates between 0 to 35 °C with maximum 80% RH non-condensing humidity at 40 °C. These conditions ensure reliability in the typical climates of GCC and African business environments.
