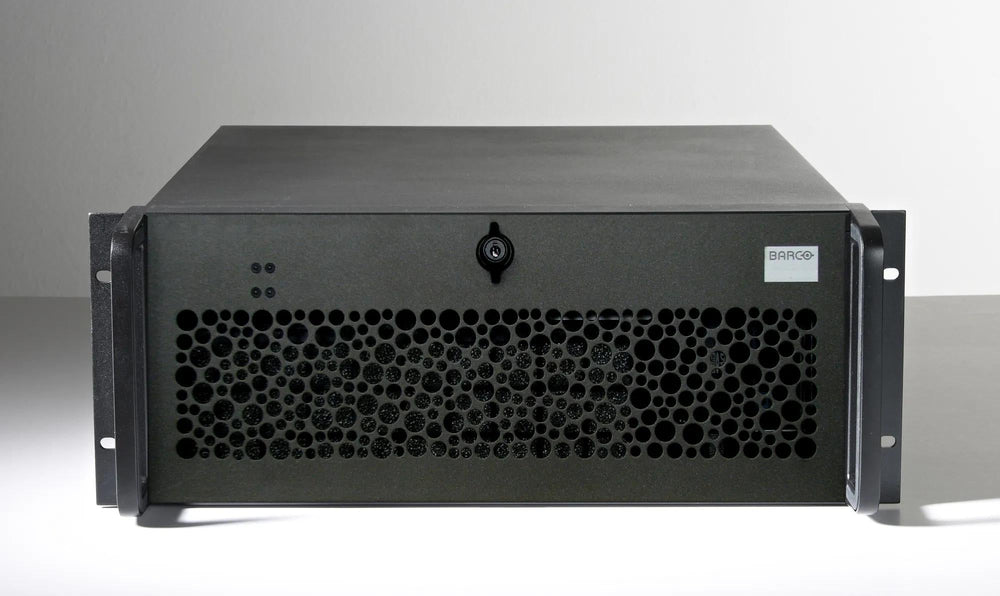

The Barco TransForm ECU-200 is a high-density video wall controller designed for control rooms. It features an Intel Core i7 quad-core processor and supports up to 48 HD displays via its 11-slot PCI Express backplane. Smart-Boards supplies this discontinued unit across the GCC and Africa, offering availability checks or successor recommendations.
The Barco TransForm ECU-200 serves as a robust platform for managing large-scale video walls in command centers. Powered by an Intel Core i7 quad-core processor running at 3.1 GHz, it handles high input density with ease. The system includes 16 GB of RAM and dual 1 TB hot-plug redundant storage, ensuring data integrity during operation. It supports up to 48 HD displays, making it suitable for complex visual environments requiring reliable performance and extensive source connectivity.
For buyers in the GCC and Africa, this unit offers standalone or networked operation capabilities. It integrates with Barco CMS or Display Control for streamlined management. As a discontinued model, Smart-Boards can confirm current stock availability or recommend the latest successor series. The device fits into standard 19-inch racks and operates on 100–240 V AC power. We provide quote-only pricing and can arrange delivery to supported regions, with on-site installation available within the UAE.
Key features
- Processing Power - Intel Core i7 quad-core processor with 16 GB RAM for running Windows applications directly on the controller.
- Display Capacity - Supports up to 48 HD displays through a 4-channel graphics card and extensive input/output expansion.
- Storage Redundancy - Dual 1 TB drives configured in RAID-1 provide hot-plug redundant storage for critical control room data.
- Input Flexibility - Features 2-channel DisplayPort 1.2 inputs and an 8-channel analog video input card for diverse source types.
- Expansion Capability - An 11-slot PCI Express 3.0 backplane allows for up to 31 input and output cards with two expansion chassis.
Ideal for: Control rooms, command centers, and broadcast facilities requiring high-density video processing, suitable for buyers across the GCC and Africa managing multiple sites.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- TransForm ECU-200
- Product type
- Video Wall Controller
- Key features
- Standalone or networked operation, 11-slot PCI Express backplane, Windows applications on the controller, high input density, hot-plug redundant storage and power
- Application
- Barco CMS or Barco Display Control (alternative option)
- Expansion
- 11-slot PCI Express 3.0 backplane, up to 31 input and output cards with two expansion chassis
System
- Processor
- Intel Core i7 quad-core 3.1 GHz (3.9 GHz max. turbo)
- Graphics
- 4-channel graphics card, up to 48 HD displays
- Operating system
- Windows 10
- RAM
- 16 GB
- Storage
- 1 TB
Connectivity
- Ethernet (RJ45)
- 2 x 1 Gb/s LAN
- Inputs
- 2-channel DisplayPort 1.2 input cards (up to 4096 x 2160 @ 60 Hz), 8-channel analog video input card (PAL, NTSC, SECAM)
Physical & warranty
- Operating temperature
- 0 to 35 °C (non-operating -20 to 70 °C)
- Dimensions
- 19-inch rackmount
- Input voltage
- 100–240 V AC, 800 W + 800 W hot-plug redundant
- Certifications
- CE, FCC Part 15 Class A, UL, CSA, EN, CCC, BIS, IEC 60950-1
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the Barco TransForm ECU-200 currently in production?
No, this model is discontinued. Smart-Boards can check for remaining stock or recommend the current successor series based on your specific requirements and budget.
Which countries receive delivery?
We ship to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations. Delivery costs are minimized through established logistics partners, and timelines are confirmed on your quotation.
Is on-site installation included?
On-site installation is available within the UAE only. For other regions, the unit is delivered ready for local setup, with remote guidance provided if needed to assist your technical team.
What operating system does it use?
The controller runs Windows 10 64-bit IoT Enterprise LTSC, allowing you to run standard Windows applications directly on the hardware for enhanced control room functionality.
How is pricing structured?
Pricing is strictly by quotation. We offer options for education, government, bulk purchases, and tender projects. Contact our team for a detailed quote tailored to your region and order size.
Can it be networked?
Yes, the ECU-200 supports both standalone and networked operation. It integrates with Barco CMS and Display Control, and can be part of a full TransForm N collaboration environment.
What are the power requirements?
The unit operates on 100–240 V AC and includes 800 W + 800 W hot-plug redundant power supplies. It is designed for 19-inch rackmount installation in standard data centers or control rooms.
