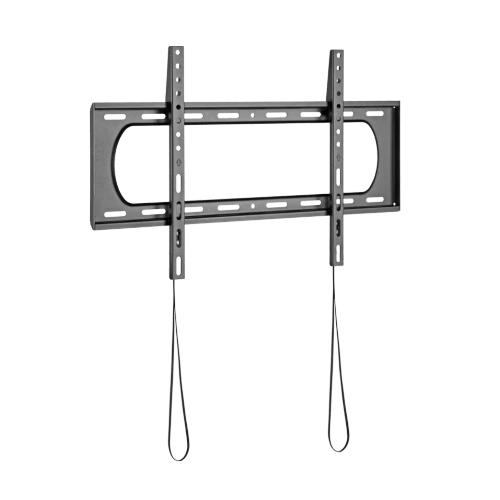

VSYS VS01A-46F Heavy-Duty Fixed Wall Mount for 37"–86" Displays, 80 kg. A flush, permanent fixing for screens that should never move once they are set.
Most commercial screens do not need to move. A lobby directory, a canteen menu board, a classroom panel above a whiteboard - once the height and the sightline are right, movement is only something else to go wrong. The VSYS VS01A-46F is built for exactly that job: a 37" to 86" display weighing up to 80 kg, held 30 mm off the wall and locked there. Smart-Boards supplies it across the GCC and Africa alongside our interactive panel and commercial display range, with quotations and low-cost delivery to your country.
The wall plate and both bracket arms are pressed from 1.8 mm cold-rolled steel and the assembly is strength tested to four times its rating, which is where the 80 kg working figure comes from. The plate drills to stud centres of 406, 450 or 600 mm or takes solid-wall fixings, and a hook-on spirit level is supplied so the line is set before any weight goes on. Spring locks catch automatically as the panel is lowered onto the plate; two pull cords release them again for rear access.
Key features
- 80 kg rating built on 1.8 mm cold-rolled steel in both the wall plate and the arms, strength tested to four times the rated load
- 37" to 86" coverage puts one part number across classroom, meeting room and signage sizes in a single order
- 30 mm wall clearance keeps the panel visually flush - important in corridors and circulation areas where a projecting screen is a hazard
- VESA from 50x50 mm up to 600x400 mm, with a maximum hole spread of 654x402 mm, so it accepts nearly every display in this size class
- Quick-release spring locks with pull cords let one installer drop the screen off the plate for cable work, then re-seat it
- Open-architecture wall plate leaves the socket outlet, the cable run and the airflow path clear behind the panel
- Fixes to stud centres of 406, 450 or 600 mm, or straight into block and concrete with the appropriate anchors
- Hook-on spirit level supplied, so the plate is levelled before the display is lifted rather than after
- Accepts flat and curved panels within the rated size and weight range
- Powder-coated finish over cold-rolled steel, specified for permanent indoor installation rather than temporary use
| Brand | VSYS |
|---|---|
| Cable management | Open architecture wall plate, clear access to outlets and cabling |
| Display compatibility | 37 inch to 86 inch flat and curved panels |
| In the box | Wall plate, bracket arms, mounting hardware kit for solid wall or dual stud, hook-on spirit level, installation instructions |
| Material | 1.8 mm cold-rolled steel, powder coated |
| Max load | 80 kg (176 lbs) |
| Mounting type | Wall mount, fixed low profile, single screen |
| Movement | Fixed, no tilt or swivel |
|---|---|
| Quick release | Spring locks with pull-cord release |
| Stud spacing | 406 mm, 450 mm or 600 mm centres, or solid wall |
| Testing | Strength tested to 4x the rated load |
| Vesa pattern | 50x50 mm to 600x400 mm, maximum hole spread 654x402 mm |
| Wall distance | 30 mm (1.2 in) |
| Model | VS01A-46F |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VS01A-46F?
It is a heavy-duty fixed wall mount for a single flat or curved display between 37" and 86", rated to 80 kg. Fixed means no tilt and no swivel - the screen sits 30 mm off the wall in the position you set at installation and stays there.
2. Is it compatible with my display?
Yes - if the screen is 37" to 86", weighs 80 kg or less and has a VESA pattern between 50x50 mm and 600x400 mm, it will fit. Tell us your display model when you request a quote and we will confirm the exact fit.
3. Why choose a fixed mount instead of a tilt or full-motion one?
Fewer moving parts, a much slimmer 30 mm profile and nothing for a passer-by to knock out of alignment. For a screen at seated eye level in a classroom or meeting room, a fixed bracket is usually the right answer. If the panel is going high on a wall, ask us about the tilting VS01A-46T instead.
4. How do I get behind the screen once it is mounted?
Pull the two release cords and the spring locks disengage, letting the display lift clear of the wall plate. One person can do this on most panels in the range. The open wall plate also leaves the socket outlet and cable run reachable without removing anything.
5. What does the 80 kg rating actually mean?
It is the working load, taken from a design that is strength tested to four times that figure. The wall plate and both arms are 1.8 mm cold-rolled steel. The limiting factor on site is usually the wall, not the bracket - fix to block, concrete or studs at 406, 450 or 600 mm centres.
6. Do you ship the VSYS VS01A-46F across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
7. How do I get a price for the VSYS VS01A-46F?
Pricing is on request. Send a quote request from the product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
8. Is installation included?
Within the UAE, yes - our team can install and set up the unit. Outside the UAE we ship it ready for local installation and provide setup guidance on request. A hook-on spirit level is included so a local installer can level the plate accurately.
9. Can it hold an interactive panel as well as a television?
Yes, provided the panel is within 37" to 86", 80 kg and a 600x400 mm VESA pattern. Because the mount is fixed and sits close to the wall, it is a solid choice for touch use - the screen does not shift when someone presses on it.
10. Can you supply large quantities for a rollout?
Yes - Smart-Boards handles multi-unit rollouts across the GCC and Africa, with volume pricing and procurement-ready documentation for tenders and education projects.
